Model :DR-PC-LC-OM3
Connector: LC/UPC
Fibers: OM3
Color : connector is beige,cable is aqua
Diameter: 0.9MM, 2.0MM, 3.0MM
Insertion Loss: ≤0.3
Return Loss:≥50

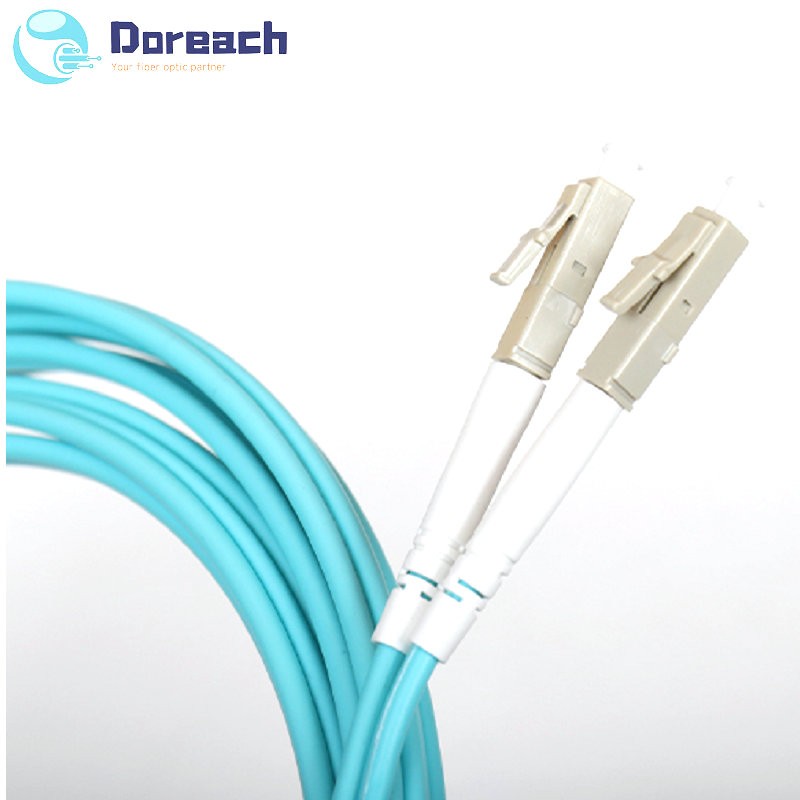

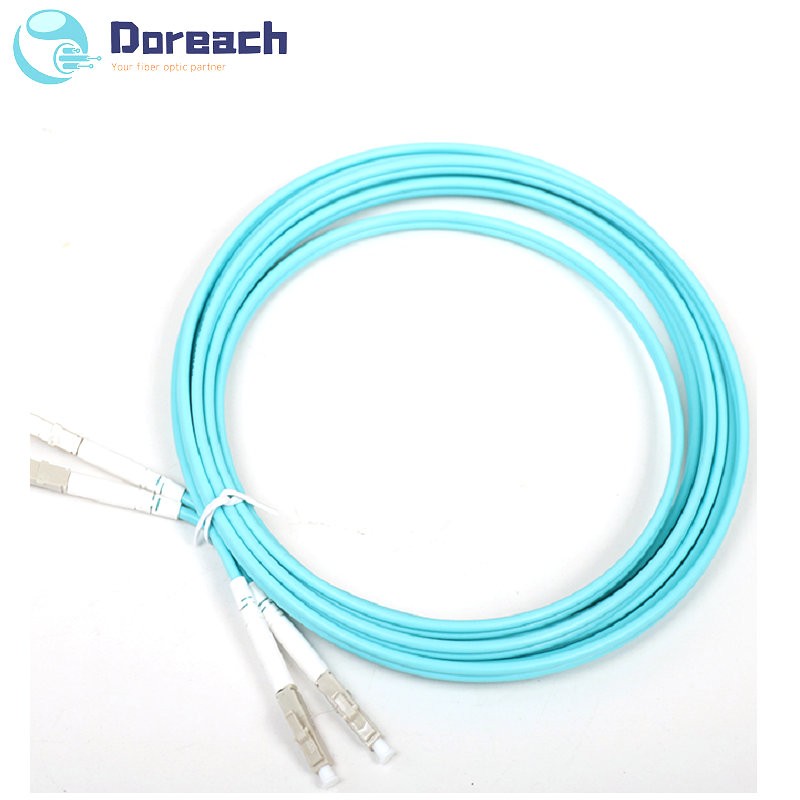

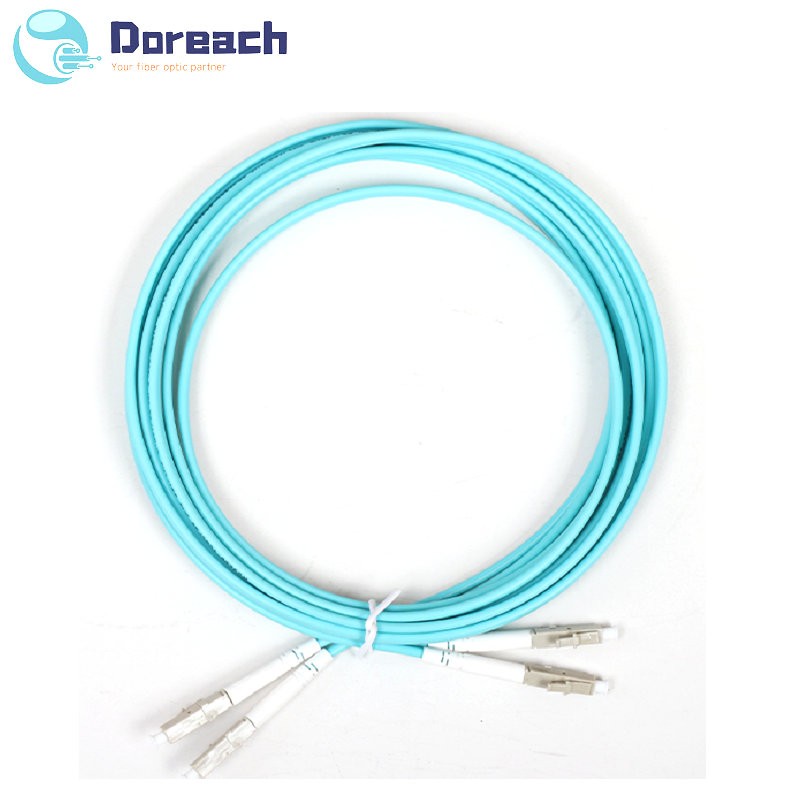

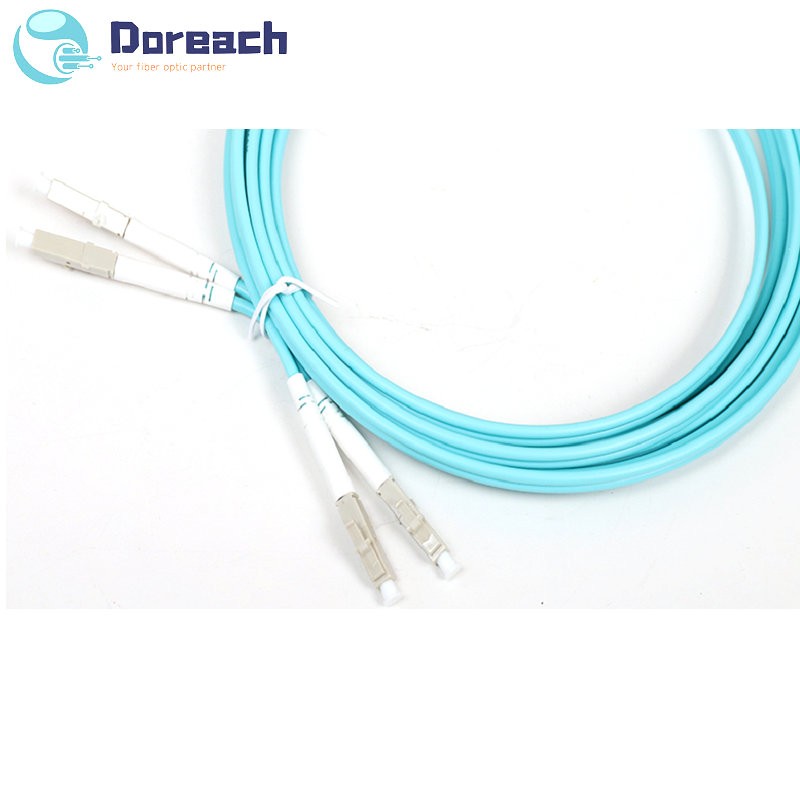

Fiber optic patch cord LC OM3

The OM3 50/125 multimode fiber optic cables compliant to ISO/IEC 11801 standards. They are used for 10Gbps networks to meet the requirement of continuous growing of high data rates.

The OM3 fiber cable has been developed according to the newest 10Gbit standards and allows the data transmission over a distance up to max 300m at 850 nm. It also available for short distance high data rates fiber optic communications.

Due to OM3 fiber optic cable has excellent optical characteristics, other than the conventional 600/1200 nm fibers, it is applicable for backbone connections based on a cost-efficient multi-mode technology up to 10Gbit.

Features:

¨ Low insertion loss

¨ High return loss

¨ Excellent mechanical endurance

¨ Good in repeatability

Application:

¨ Telecommunications

¨ CATV, LAN, MAN, WAN, Test & Measurement

¨ Military industry

¨ Medical

Parameter:

Parameter	Unit	Standard & Requirement
Insertion loss	dB	≤0.3
Changeability	dB	≤ 0.20
Return loss	dB	>50dB(UPC)
Insert and pull frequency	Time	> 1000
Operating temperature	℃	-40～+85
