Model: DR-AD-SCADX Polishing:APC Inserstion loss :Max 0.2dB Return loss: Min 55dB Housing material: Plastic Sleeve: Ceramic Sleeve Spring plate: Stainless steel Adapters are supplied with dust caps

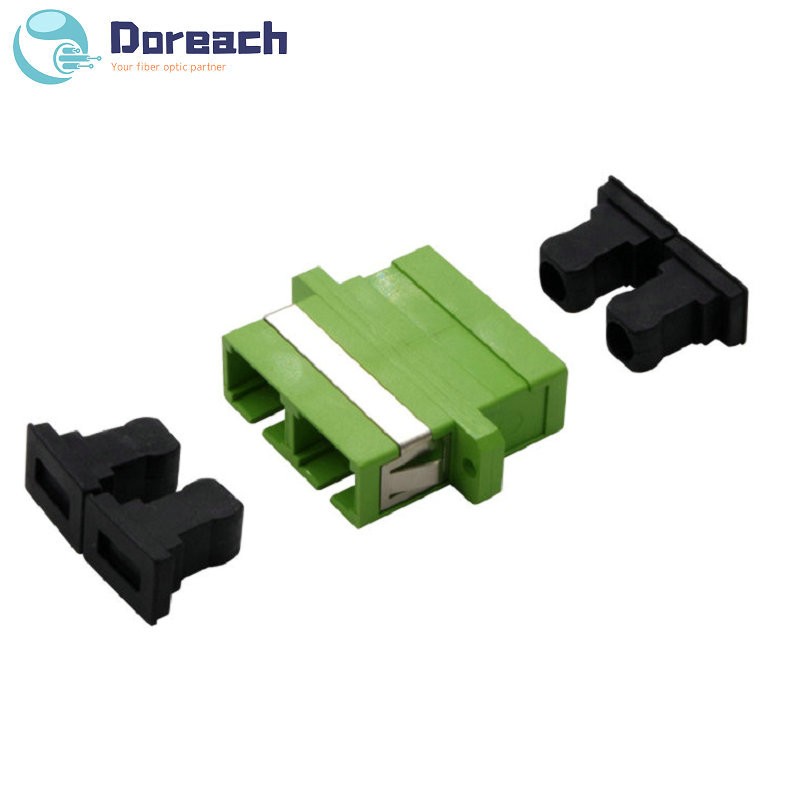

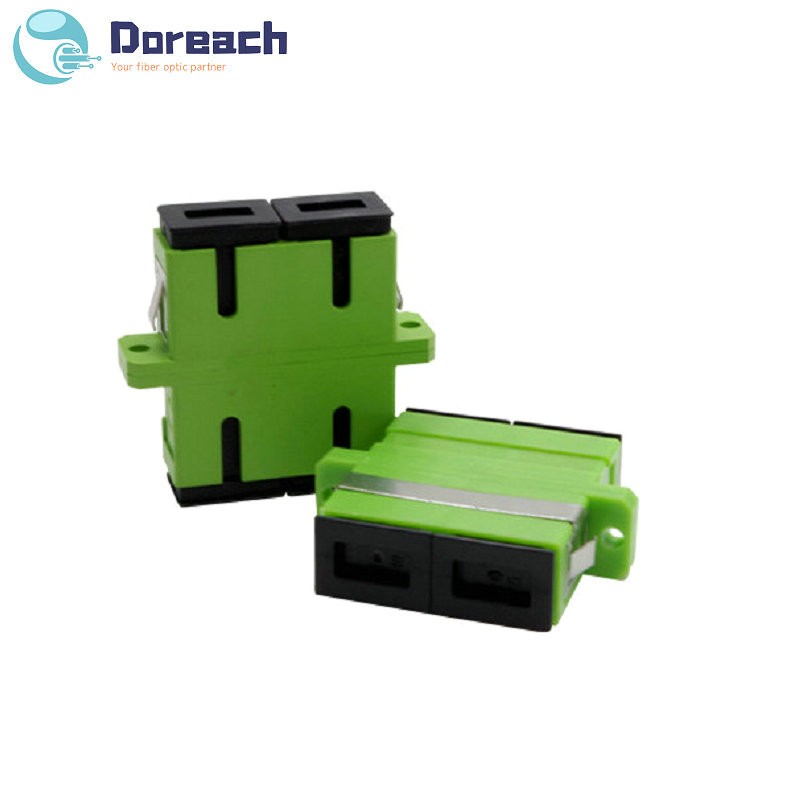

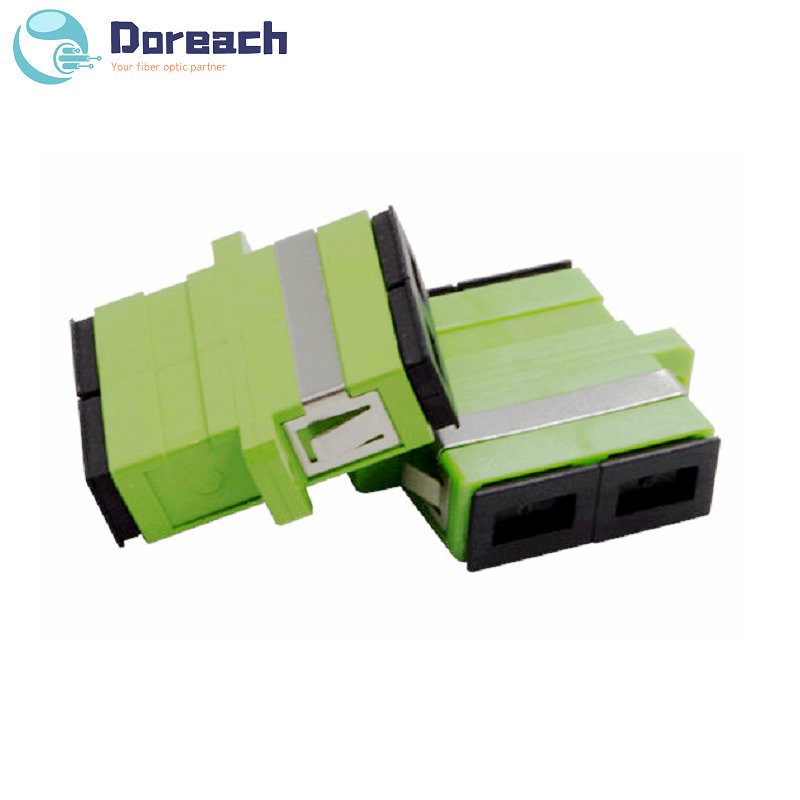

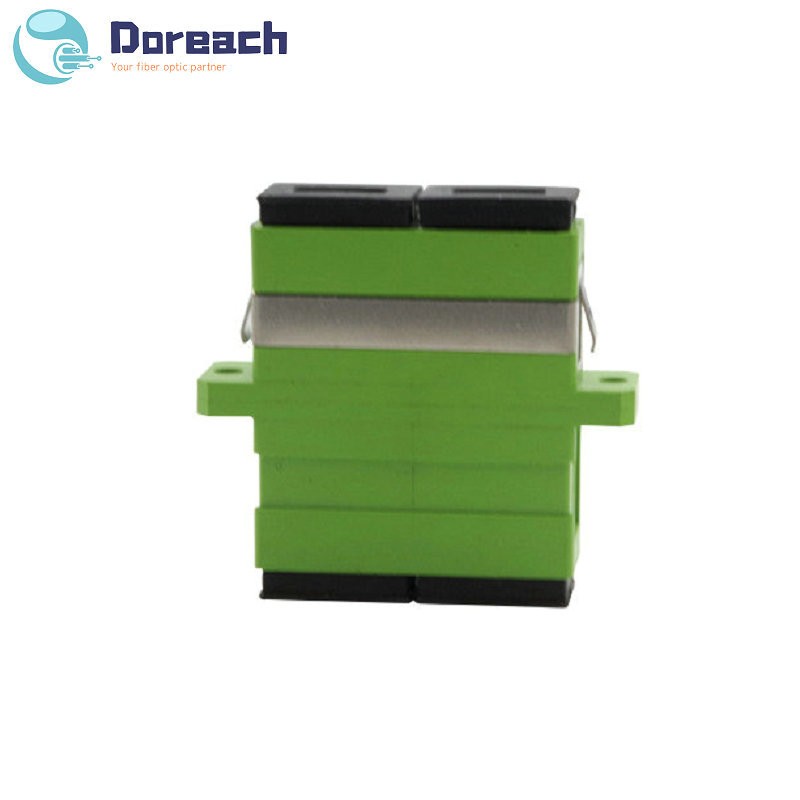

Fiber optic adapter SC/APC Duplex
Housing material: Plastic
Sleeve: Ceramic Sleeve
Spring plate: Stainless steel
Adapters are supplied with dust caps
|
Parameter |
Unit |
Value |
|
Insertion Loss (Typical) |
dB |
≤ 0.2 |
|
Return Loss |
dB |
≥ 55 |
|
Mechanical endurance (500T) |
dB |
≤ 0.2 |
|
Operating Temperature |
℃ |
-40~+75 |
|
Storage Temperature |
℃ |
-45~+85 |
|
Relative Humidity |
% |
95 |
Application:
CATV System
Telecommunications
Optical Networks
Testing / Measurement Instruments
Fiber to the Home
