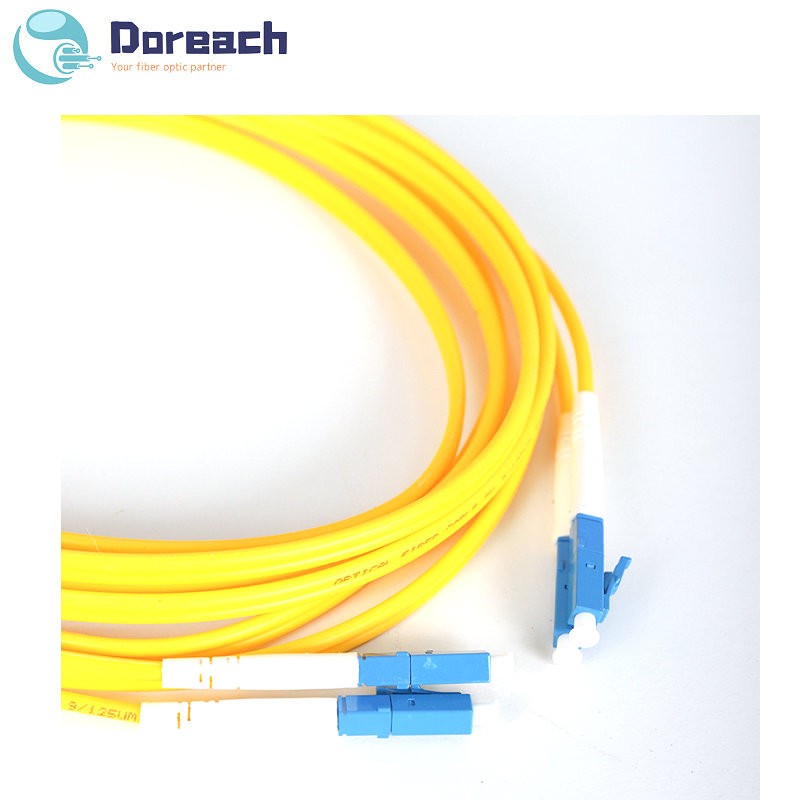

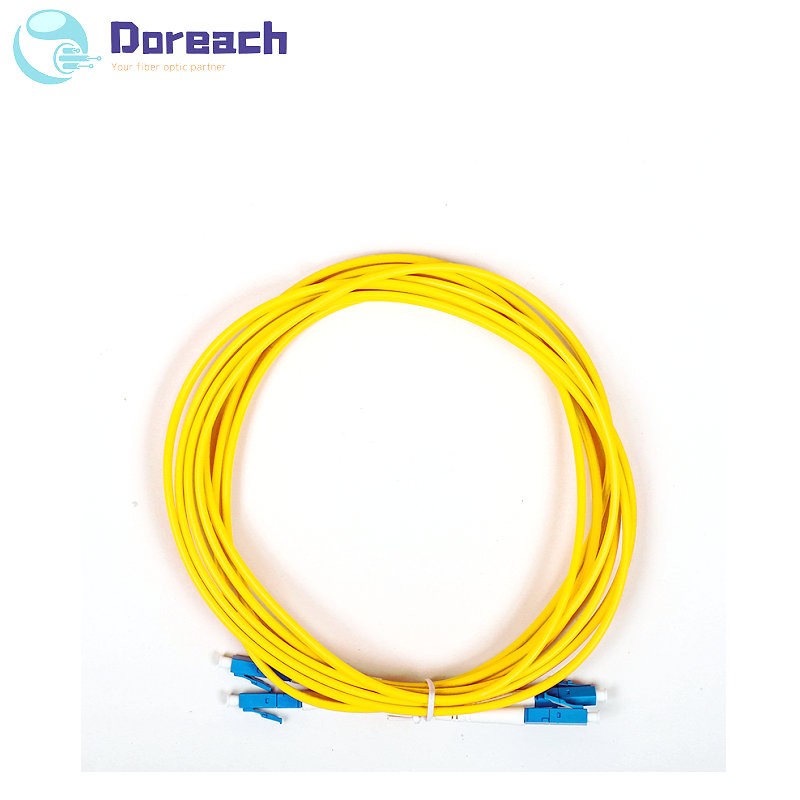

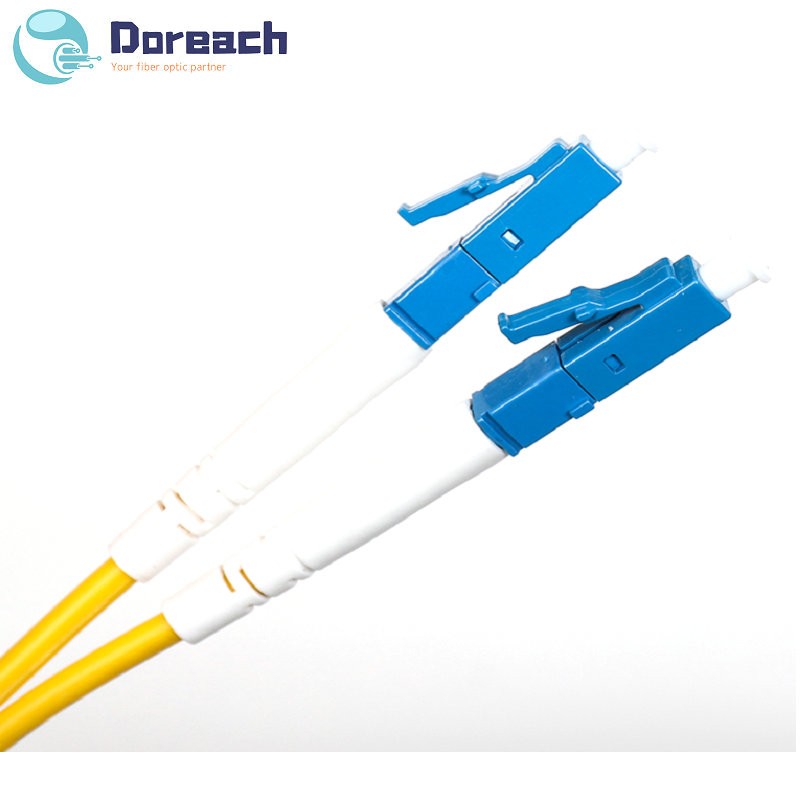

Fiber optic patch cord LC UPC

Model :DR-PC-LC-UPC
Connector: LC/UPC
Fibers: G652D, G657A, G657B, G655 available
Color : connector is blue,cable is yellow
Diameter: 0.9MM, 2.0MM, 3.0MM
Insertion Loss: ≤0.3
Return Loss:≥50

Product Description:

Fiber optic patch cord LC UPC

LC fiber optic patch cord is available in both Single mode and multimode versions.Both single-mode and multimode versions LC fiber patch come with a zirconia ceramic ferrule.

Features:

¨ Low insertion loss

¨ High return loss

¨ Excellent mechanical endurance

¨ Good in repeatability

Application:

¨ Telecommunications

¨ CATV, LAN, MAN, WAN, Test & Measurement

¨ Military industry

¨ Medical

Parameter:

Parameter	Unit	Standard & Requirement
Parameter	Unit	PC(SM)	UPC(SM)	APC(SM)	PC(MM)
Insertion Loss (Typical)	dB	≤0.3	≤0.3	≤0.3	≤0.3
Return Loss	dB	≥45	≥50	≥60	≥35
Mechanical Endurance (500T)	dB	≤0.2
Exchangeability	dB	≤0.2
Durability	Time	＞1000
Vibration	dB	≤0.2
Operating Temperature	℃	﹣40 ～﹢75
Storage Temperature	℃	﹣45 ～﹢85
Cable Diameter	mm	Ф3.0, Ф2.0, Ф0.9
