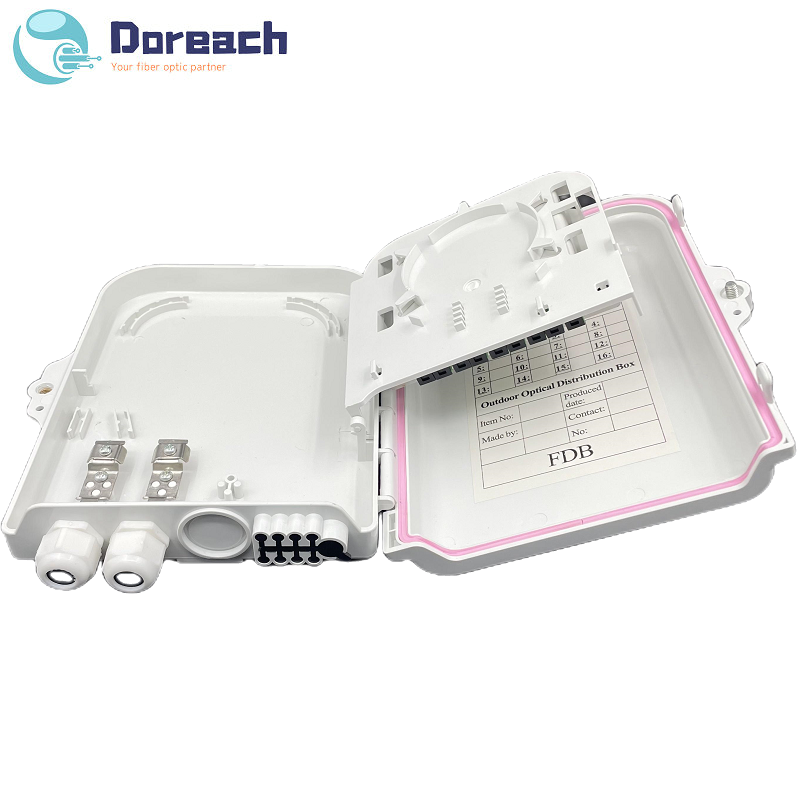

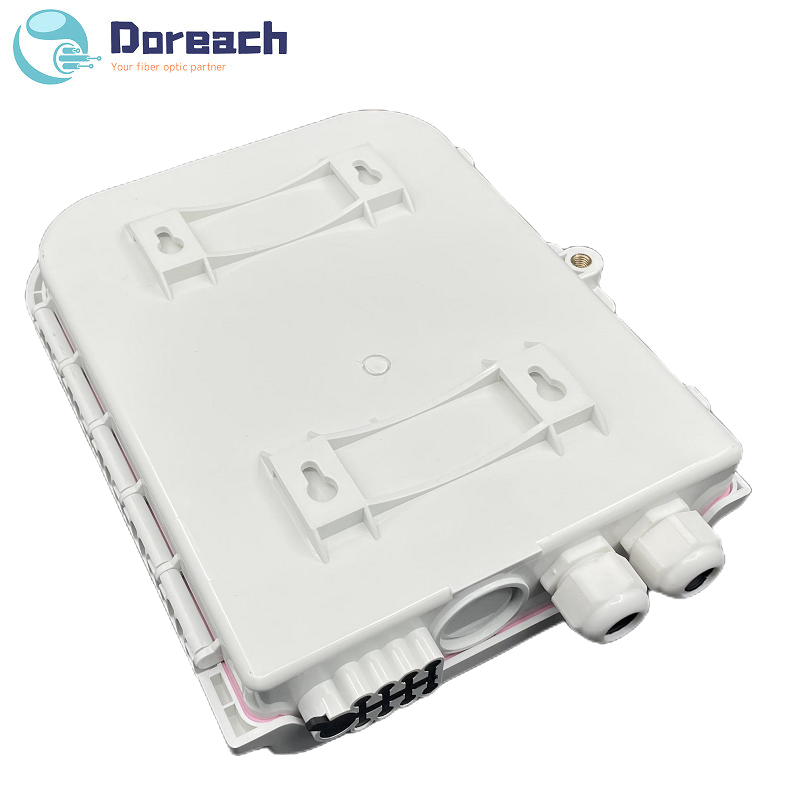

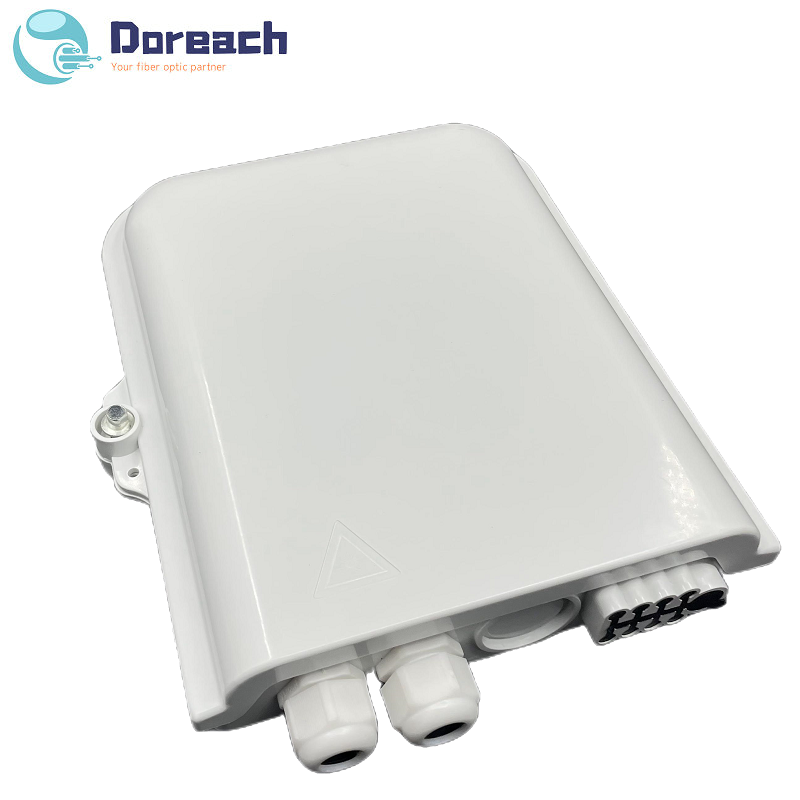

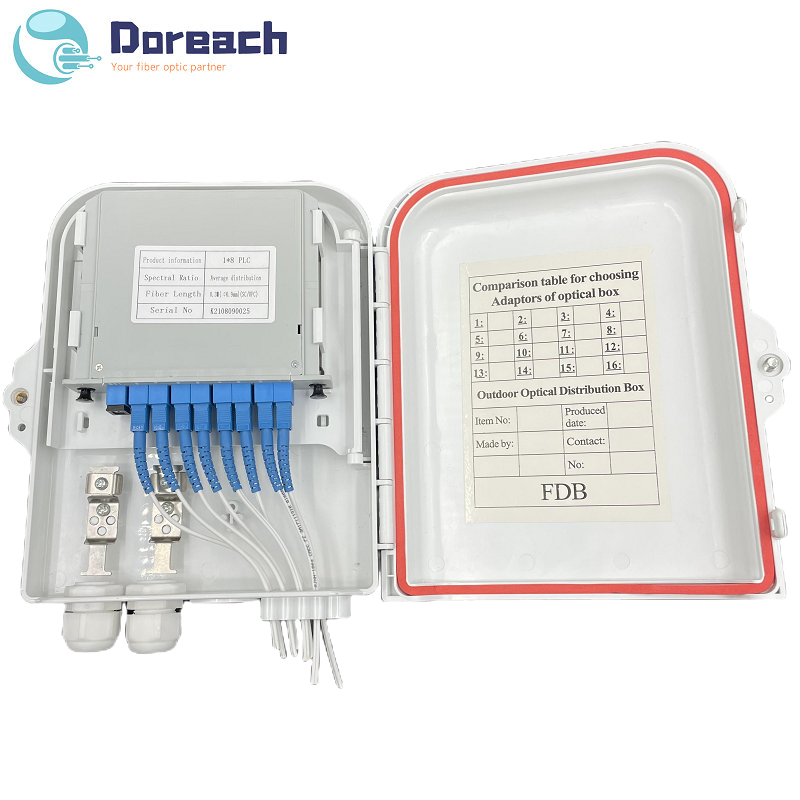

Fiber optic terminal box with 1x8 PLC cassette FDB box

Fiber optic terminal box with 1x8 PLC cassette FDB box

Model :DR-FDB007
Material :ABS
Dimension: 230*200*55 mm
Max trays: 4 trays
Max capacity:1pc 1x8 PLC cassette
Cable port: 2 Inlet 8 Outlet
Installation : Pole mount and wall mount

Product Description:

Fiber optic terminal box with 1x8 PLC cassette FDB box

Features

Protection Grade: IP65.
Industry Standard User Interface,Be Made Of High Impact Plastic Material(Can Use 10 Years).
Anti-UV, Ultra Violet Resistant And Rainfall Resistant.
Wall And Pole Mountable.
Efficient Cable Management
Varies Of Adaptors Are Available

Application

Widely Used In FTTH Access Network.
Telecommunication Networks
CATV Networks
Data Communications Networks
Local Area Networks

Items	Specification
Optical Splitter PLC Capacity (Fiber Count)	1pcs 1:8 SC/APC SC/UPC PLC
Dimensions (WHD,Mm)	23020055 Mm
Number Of Cable Entrance(S) And Exit(S)	44628

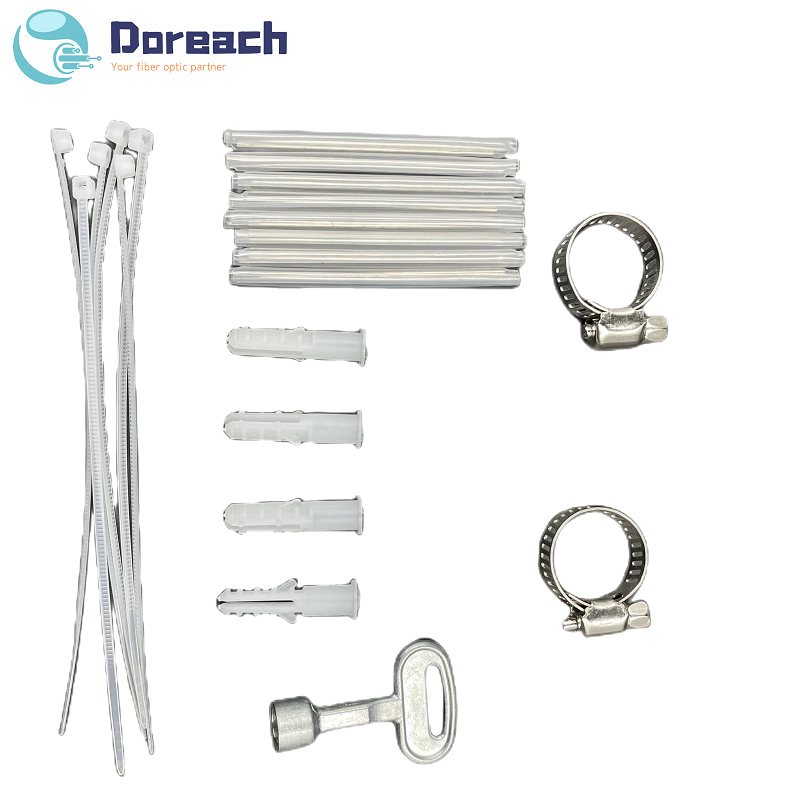

Other Accessories	Wall Mounting Kits,Screws,Cable Tie,Heat Shrink Protective Sleeves,Key
Installation (Wall-Mounted/Pole-Mounting)	Wall-Mounted/Pole-Mounting
