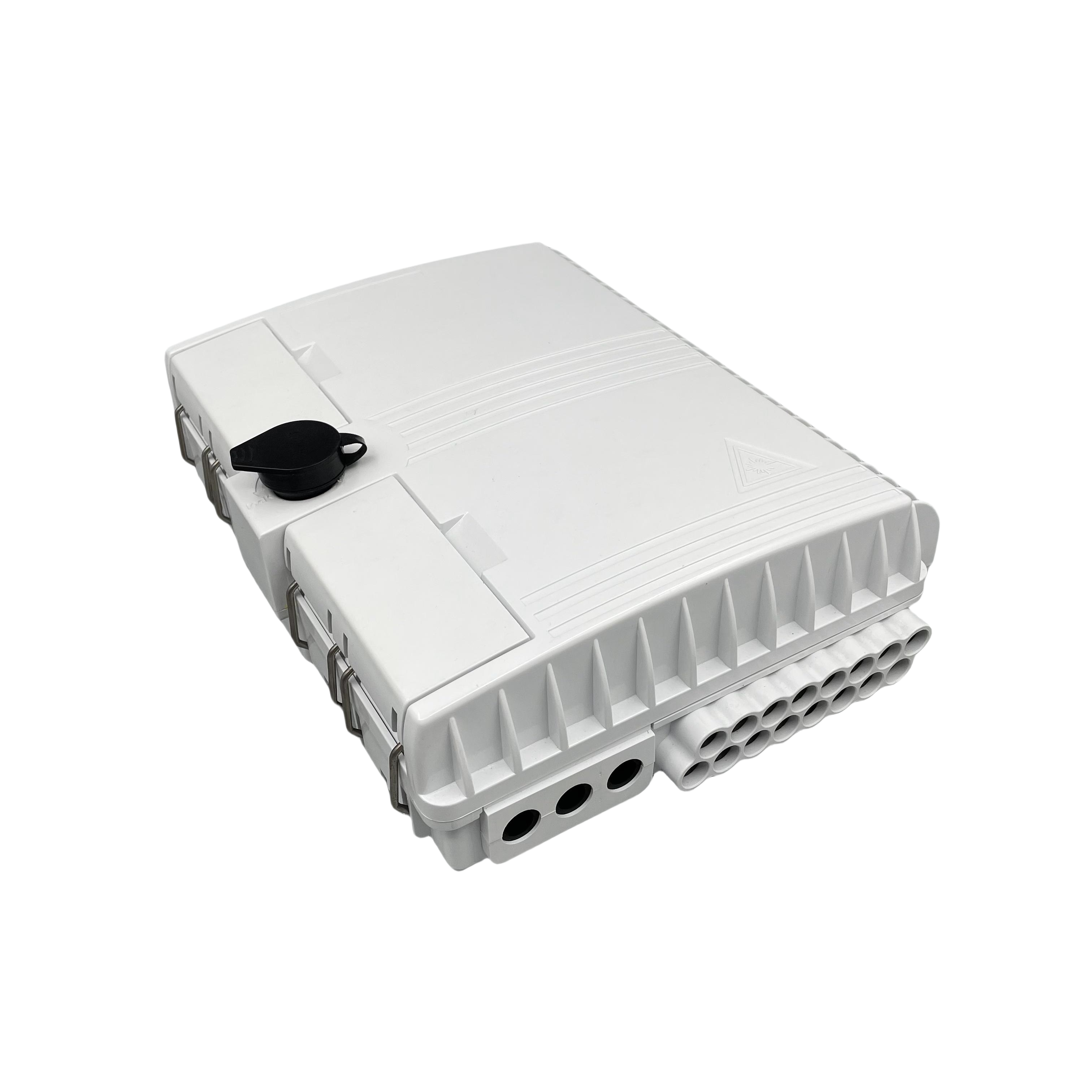

16ports FTTH box fiber optic terminal box with 1x16 splitter

Description
This box is used as a termination point for the feeder cable to connect with drop cable in FTTX communication network system.

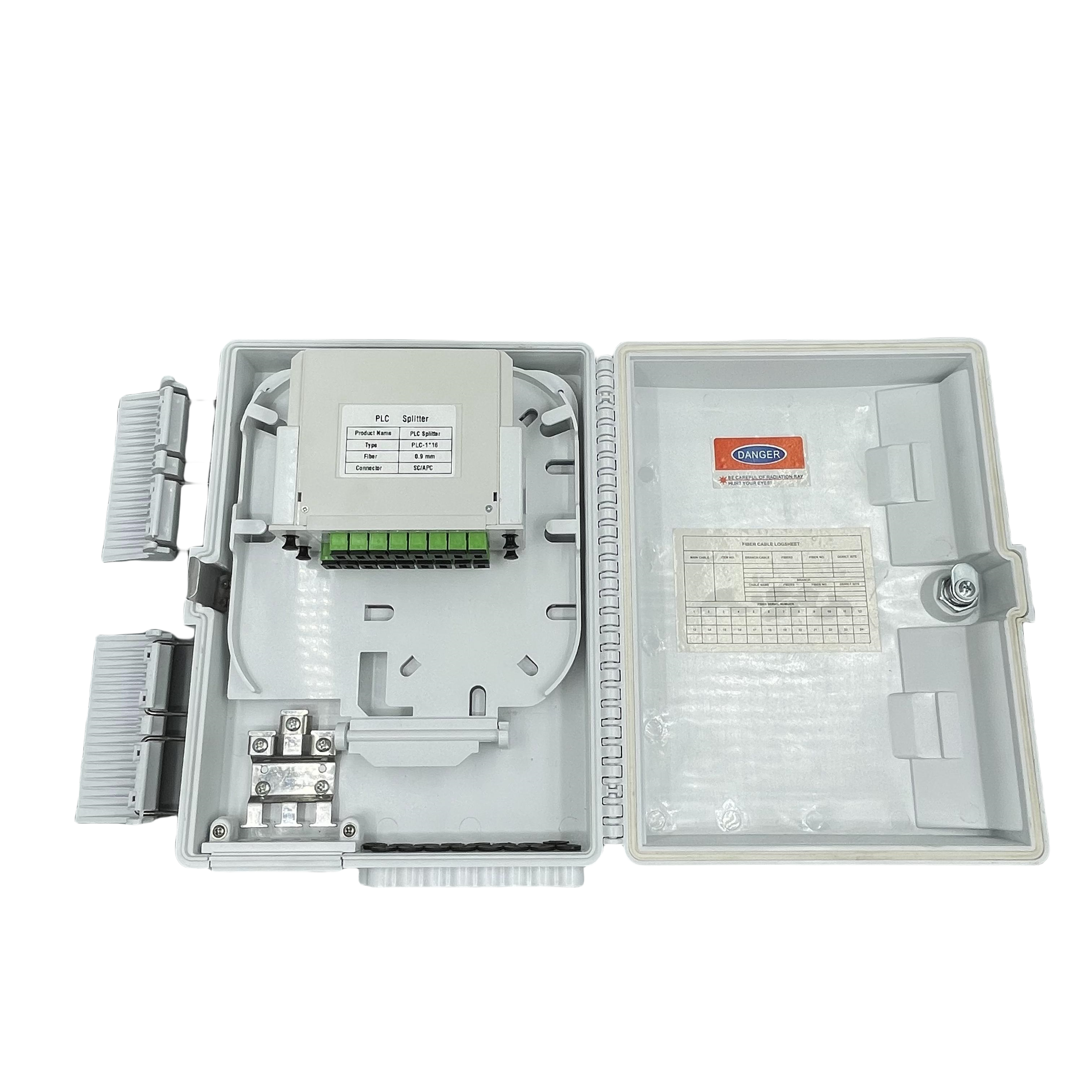

It intergtates fiber splicing, splitting, distribution, storage and cable connection in one unit. Meanwhile, it provides solid protection and management for the FTTX network building.
Features
1、Total enclosed structure.
2、 Material: ABS or ABS+PC, wet-proof、 water-proof、dust
proof、anti-aging, protection level up to IP65.
3、 Clamping for feeder cable and drop cable, fiber splicing, fixation,
storage distribution ... etc all in one.

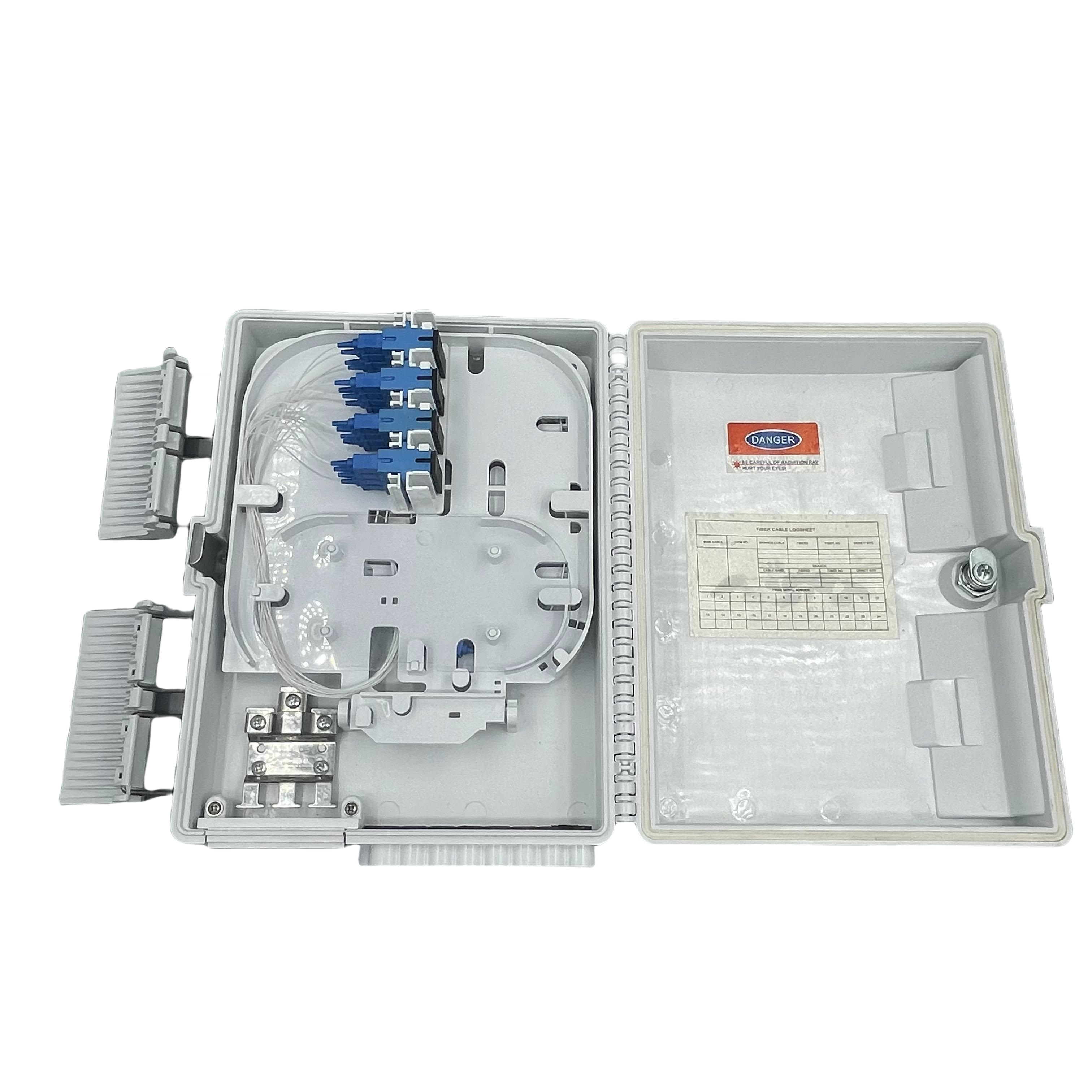

4 、 Cable, pigtails, patch cords are running through own path
without disturbing each other, cassette type SC adaptor .installation,
easy maintenance.

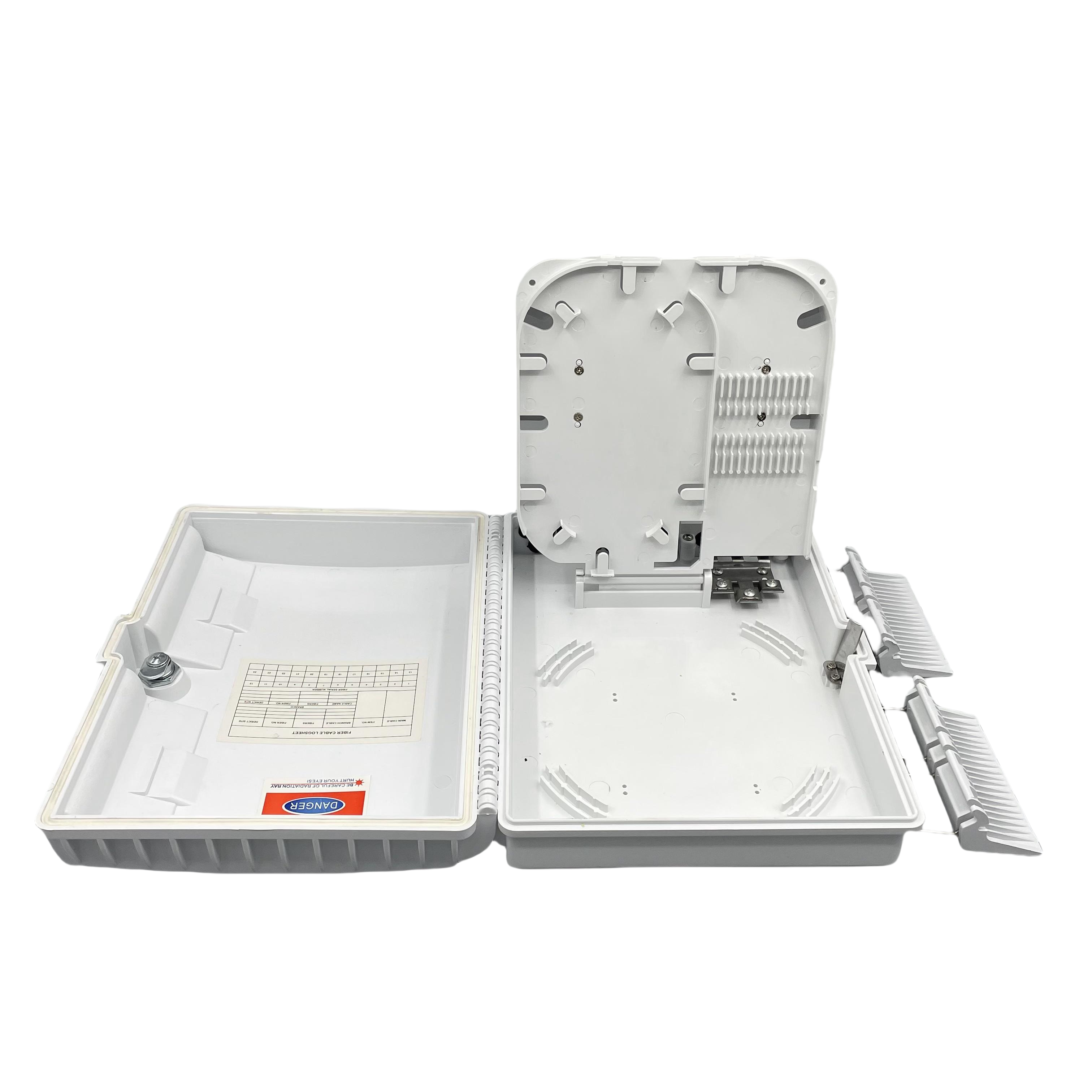

5、 Distribution panel can be flipped up, feeder cable can be placed
in a cup-joint way, easy for maintenance and installation.

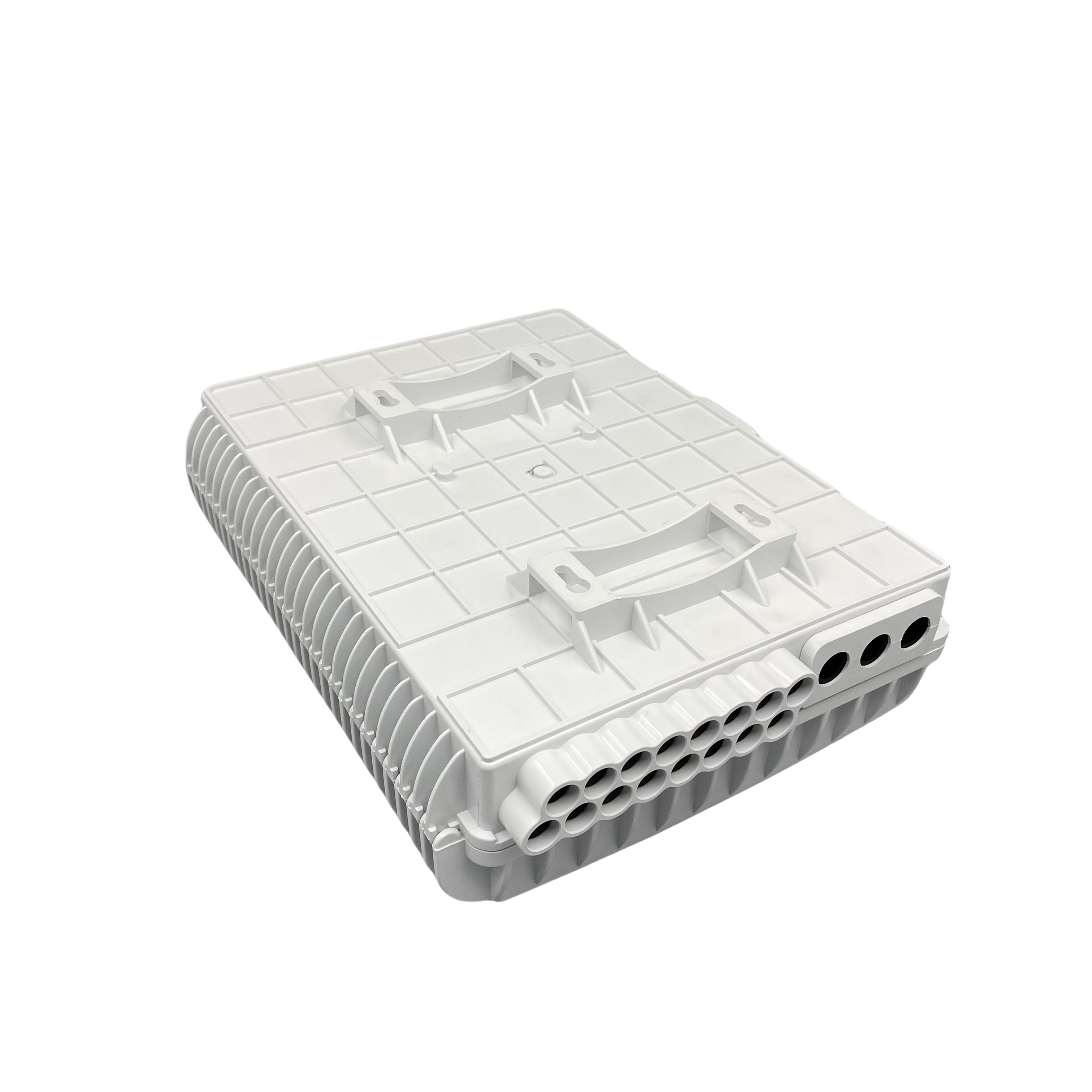

6 、 Box can be installed by the way of wall-mounted or poled-
mounted,suitable for both indoor and outdoor uses.
Configuration
Material Size Max Capacity Nos of Adaptor Weight Ports
ABS or ABS+PC
A*B*C(mm)
300*245*100
Splice 16 Fibers
(1trays,16 core/tray)
1pcs of 1x16
16 pcs of SC(max) 1.35kg 3 in 16 out
Applications
Wall mounting and pole mounting installtion
FTTH pre-installation and filed installation
5-10mm cable ports suitable for 2x3mm indoor FTTH drop cable and outdoor figure 8 FTTH self-supporting drop cable
Standard Accessories
Screw: 4mm*40mm 4pcs
Expension bolt: M6 4pcs
Cable tie:3mm*10mm 6pcs
Heat-shrink sleeve:1.0mm*3mm*60mm 16pcs
Hose clamps：2pcs
Key:1pcs
Replaceable Accessories：1 sets
