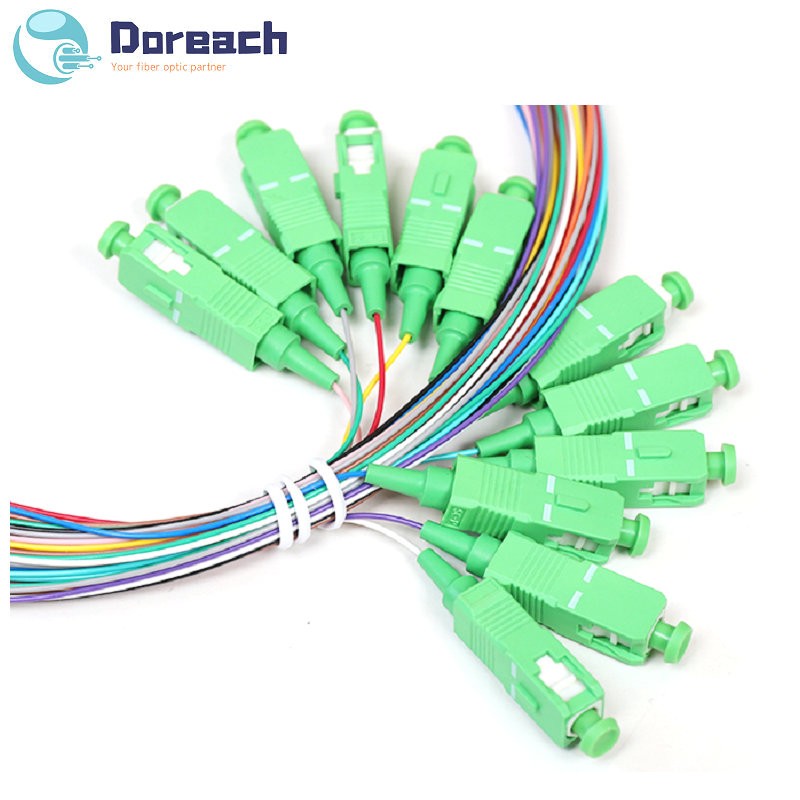

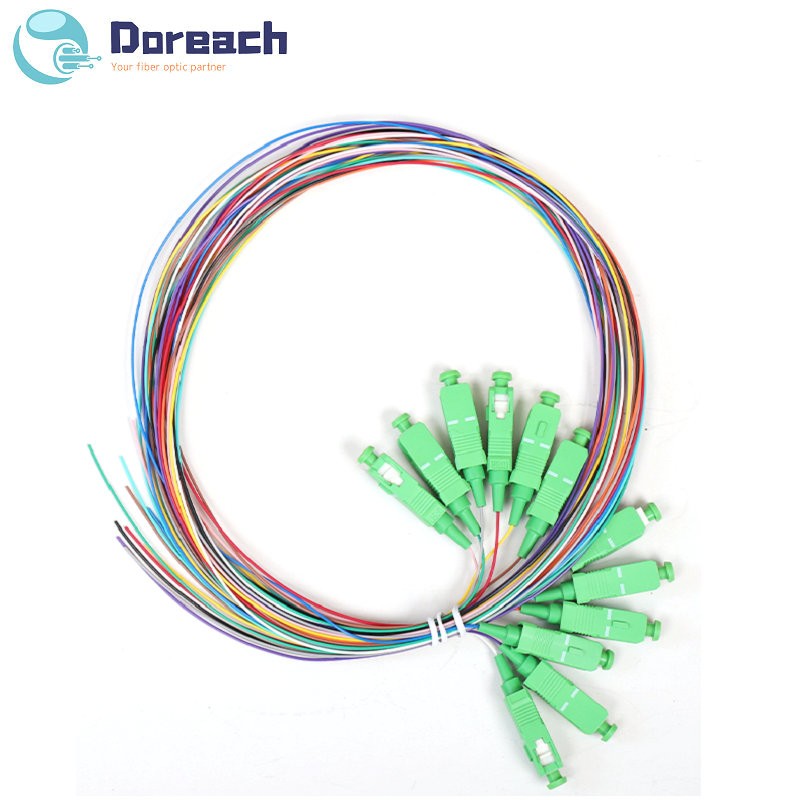

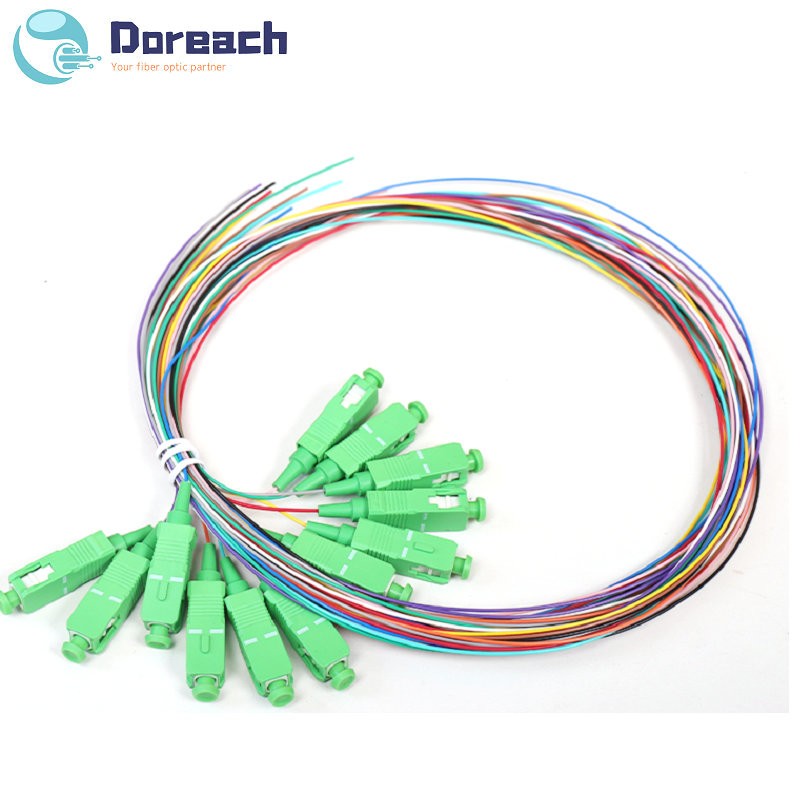

12 colors SC APC Pigtails 0.9mm G657A2 LSZH

12 colors SC APC Pigtails 0.9mm G657A2 LSZH

Model :DR-PT-SC-APC

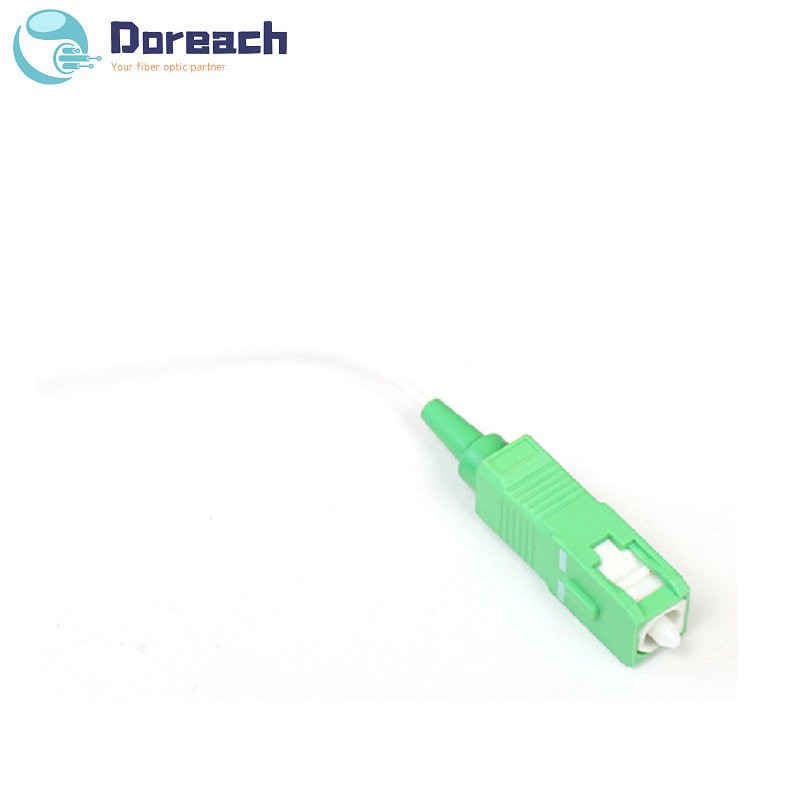

Connector: SC/APC
Fibers: G652D,G657A,G655,G657B
Color : connector is blue,cable 12colors
Insertion Loss: ≤0.3
Return Loss:≥50

Product Description:

12 colors SC APC Pigtails 0.9mm G657A2 LSZH

Fiber optic pigtails the typical use is to link the fiber optic cable with fiber optic equipment, the fiber optic pigtail with connector side is used to link the equipment, while the other side of the pigtail is melted together with the fiber cable, by melting together the fiber glasses, it can reach a minimum insertion loss. Common types of fiber optic pigtails are usually with 0.9mm fiber cable diameter, and usually installed inside ODF unit.

Features:

Low insertion loss

High return loss

Excellent mechanical endurance

Good in repeatability and exchangeability

Application:

Telecommunications

FTTX

CATV

Optical communication system

Specification:

Fiber type	SM	9/125, G.652D, G657A
	MM	50/125, 62.5/125, OM3
Connector	Type	SC, ST, LC ,FC, SC/APC, FC/APC, LC/APC
	Boot Color	Blue, green , Beige...
	Hood	Ø 0.9 mm, 2.0mm, 3.0mm
Materials	Ferrule	Zirconia
	Boot	Beige , black , yellow, green , blue...
	Dust cap	PE (white,or other)
	Cable	PVC Buffer, LZSH, Aramid yarn, PVC jacket…
Length	1~2 meters
Technical Characteristics	Insertion Loss	< 0.3dB
	Return Loss	SM:> 45 dB(PC) >50 (UPC), >60(APC); MM:>35 dB
	Operating Temperature	-40°C to +85°C
