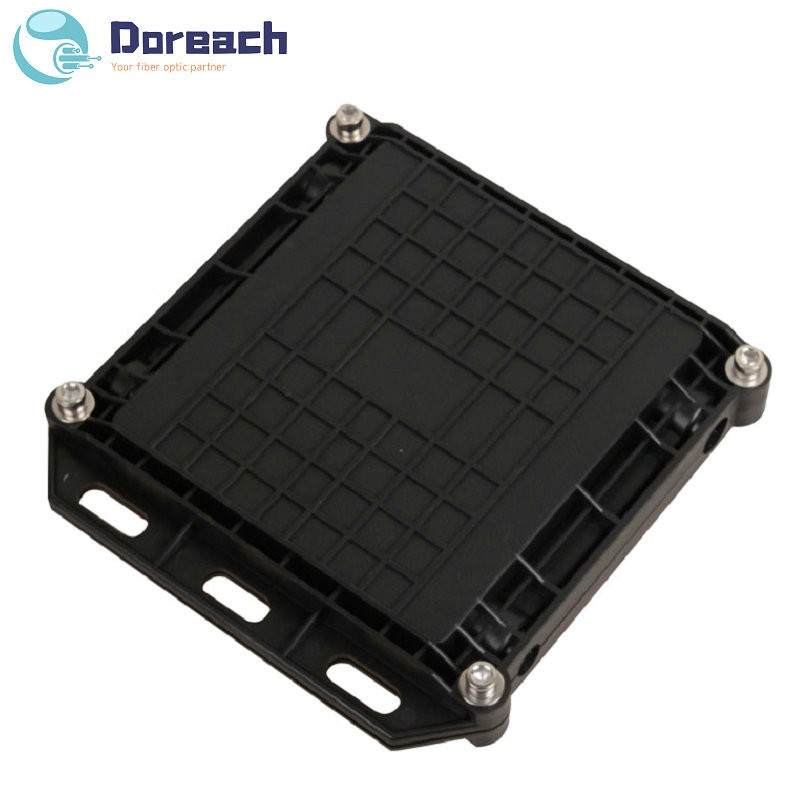

Model: DR-IC-007
Material:PP or ABS
Structure:Inline aerial closure
Dimension :210*210*58mm
Max Capacity:96cores
Max trays: 4 trays
Cable Ports:2 In 2 Out
Suitable Dia Of Cable:φ 20mm

ftth mini inline closure 96 cores

Description

optical splice closures are used to distribute, splice, and store the outdoor optical cables which enter and exit from the ends of the closure. There are two connection ways:direct connection and splitting connection. They are applicable to situations such as overhead, man-well of pipeline, embedded situation etc. Comparing with terminal box, the closure requires much stricter requirement of seal.

Features

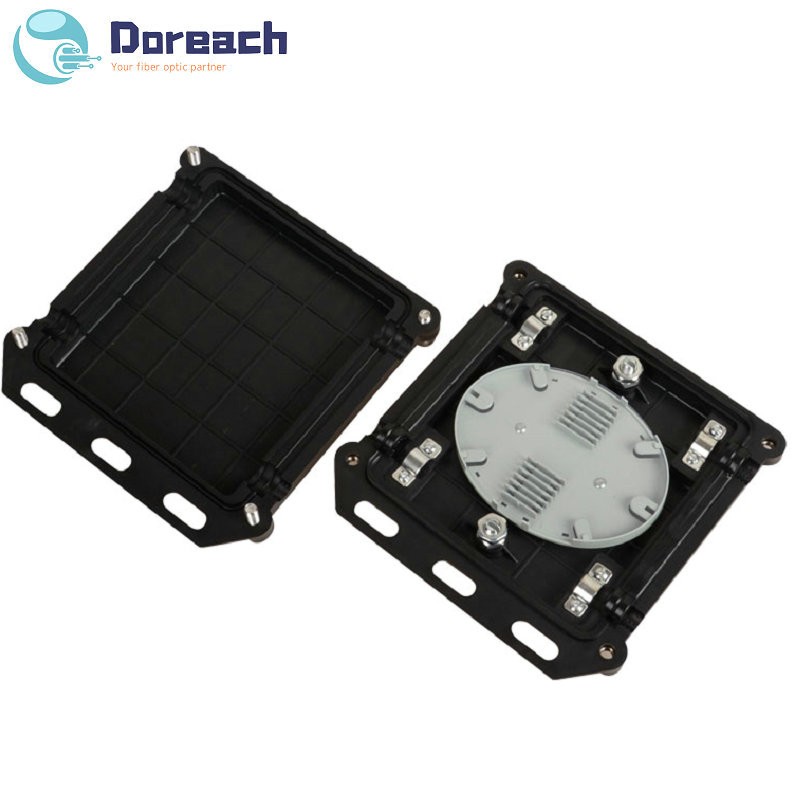

The closure casing is made of quality engineering PP plastics, and of good performance of anti-erosion against acid and alkali salt, anti-aging, as well as smooth appearance and reliable mechanical structure. The mechanical structure is reliable and has the performance of resisting wild environment and intensive climate changes and serious working environment. The protection grade reaches IP68. The splice trays inside the closure are turn-able like booklets, and have adequate curvature radius and space for winding optical fiber to make sure the curvature radius for optical winding 40mm.Each optical cable and fiber can be operated individually. The closure is of small volume, big capacity and convenient maintenance. The elastic rubber seal rings inside the closure are of good sealing and sweat-proof performance.

Configuration

Product Name	Horizontal Fiber Optic Joint Closure
Material	PP or ABS
Dimension (Mm):	210*210*58mm
Color	Black
Max Capacity	24 48 96 Core
Cable Entry	2 Inlet 2 Outlet
Tray	Madidi
Used	For Aerial ,Buried ,Wall And Wall People Use Wells

Applications

Used for direct transmission of outdoor cable in aerial、duct and direct buried application.
Used for branching connection and protect the joint.
