Model: DR-AD-SCUSX Polishing:UPC Inserstion loss :Max 0.2dB Return loss: Min 50dB Housing material: Plastic Sleeve: Ceramic Sleeve Spring plate: Stainless steel Adapters are supplied with dust caps

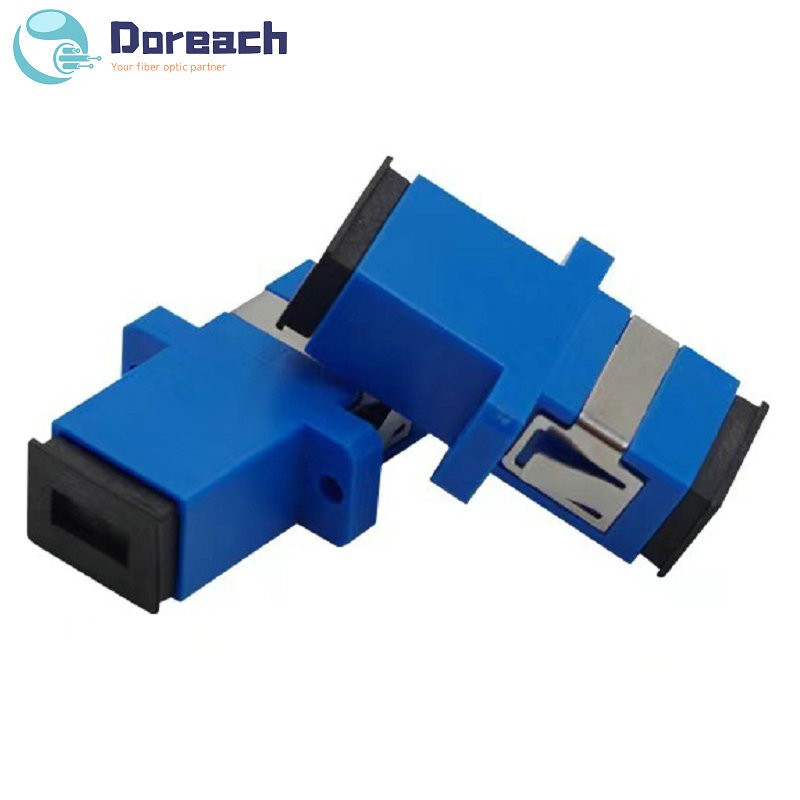

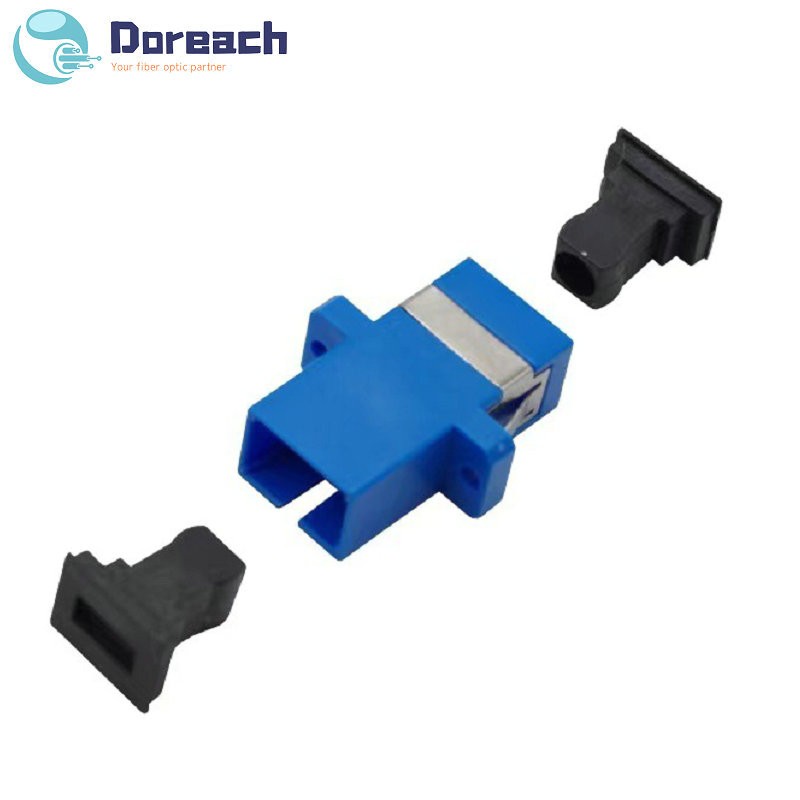

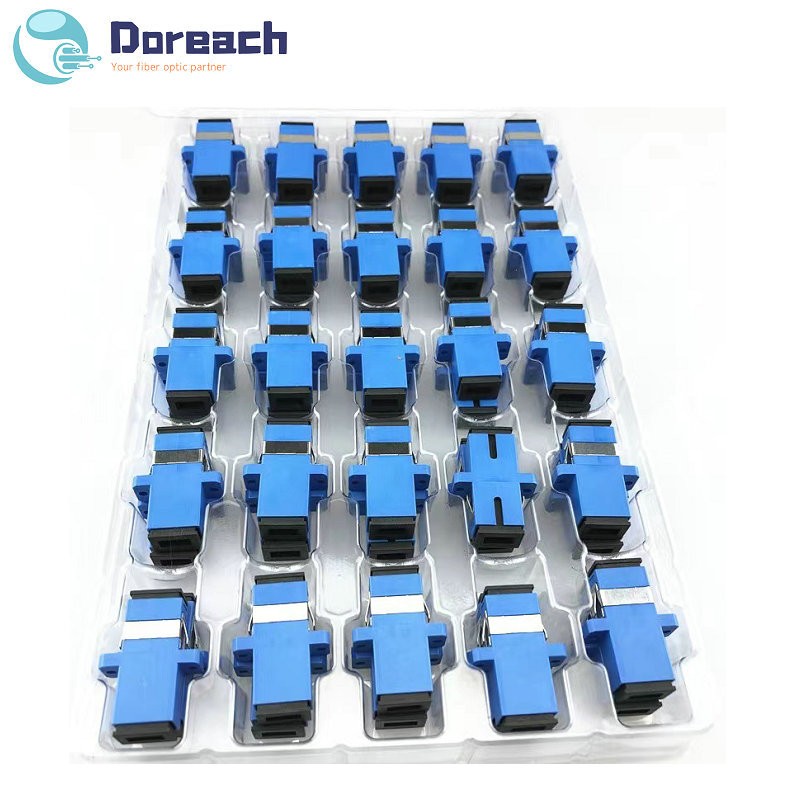

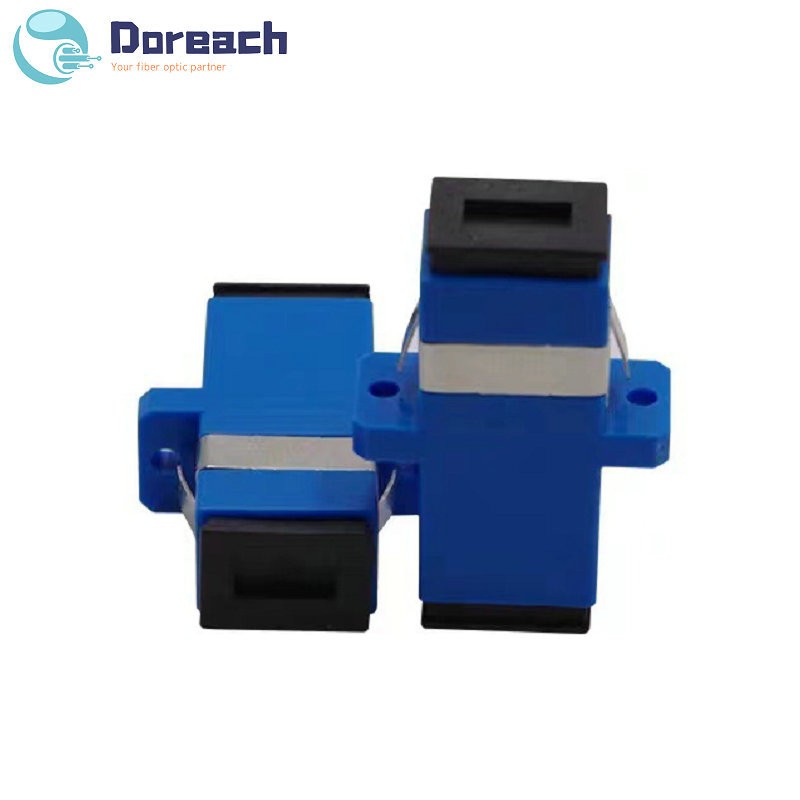

Fiber optic adapter SC/UPC Simplex
Housing material: Plastic
Sleeve: Ceramic Sleeve
Spring plate: Stainless steel
Adapters are supplied with dust caps
Parameter
Unit
Value
Insertion Loss (Typical)
dB
≤ 0.3
Return Loss
dB
≥ 50
Mechanical endurance (500T)
dB
≤ 0.2
Operating Temperature
℃
-40~+75
Storage Temperature
℃
-45~+85
Relative Humidity
%
95
Application:
CATV System
Telecommunications
Optical Networks
Testing / Measurement Instruments
Fiber to the Home
