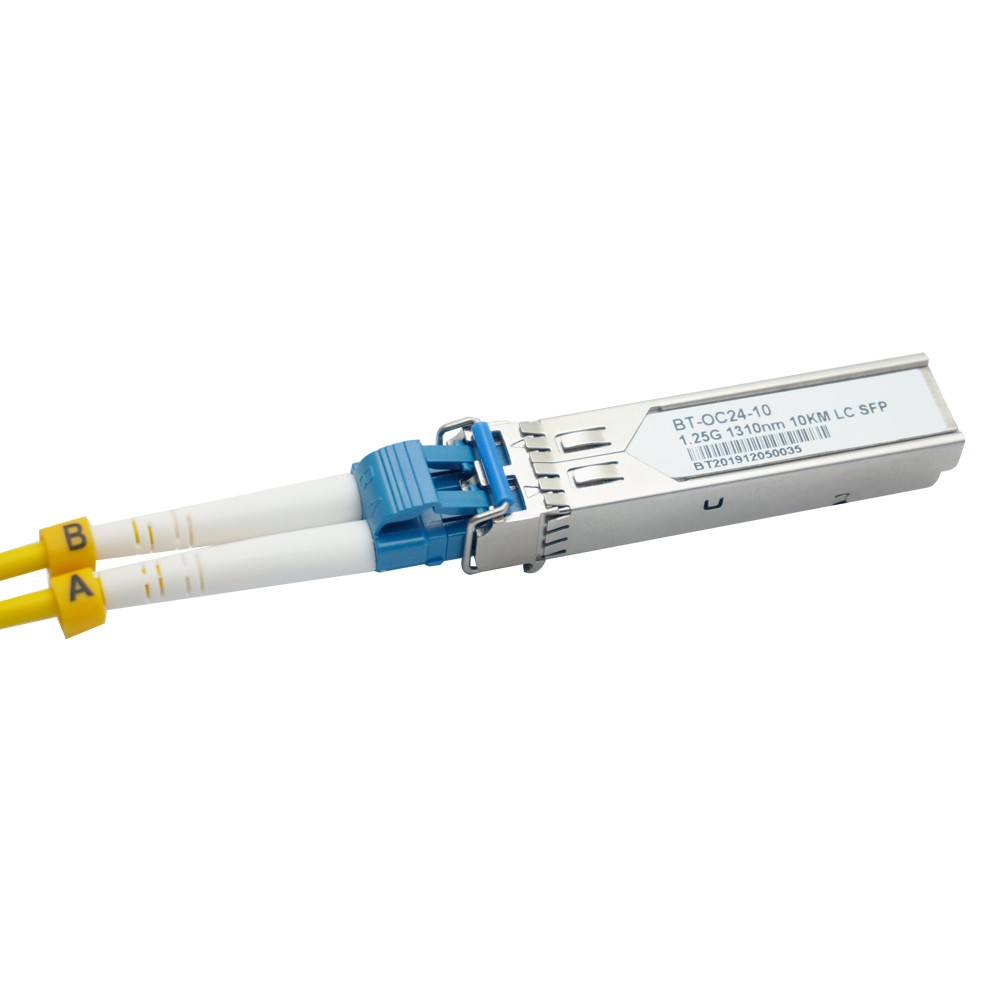

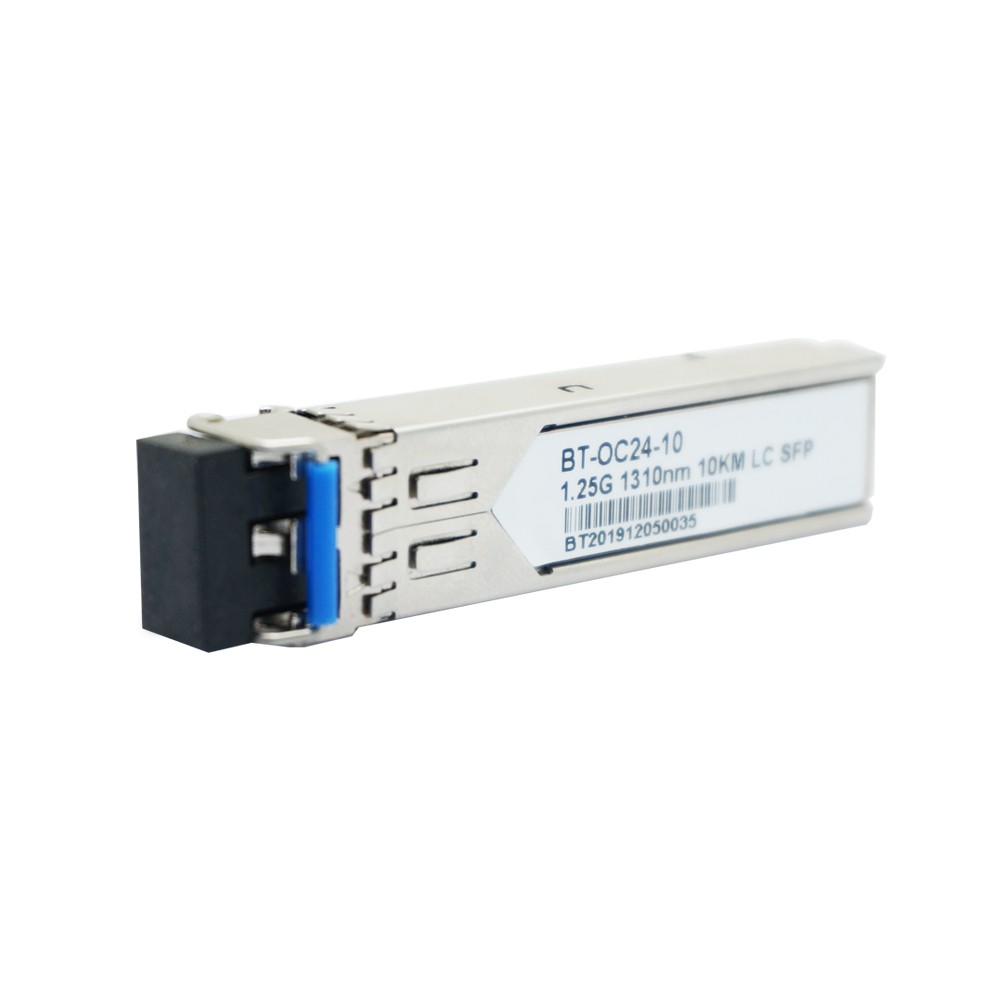

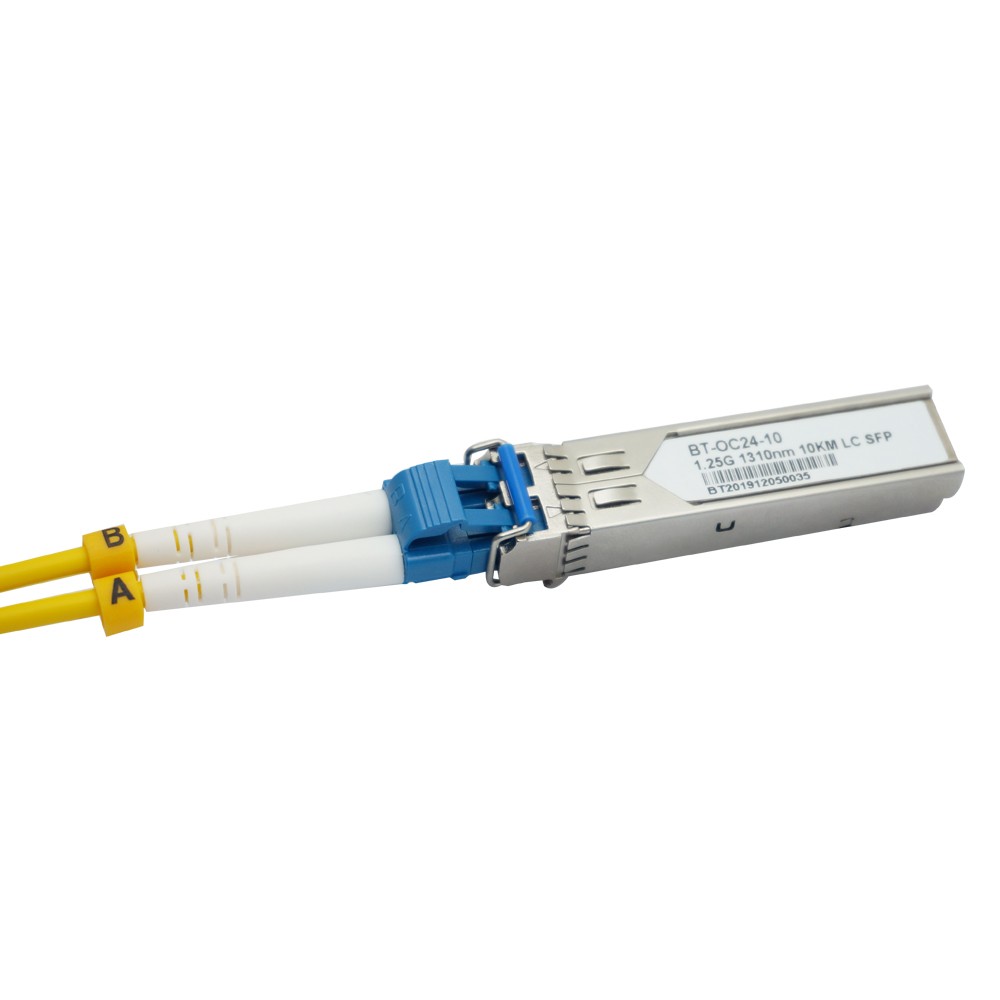

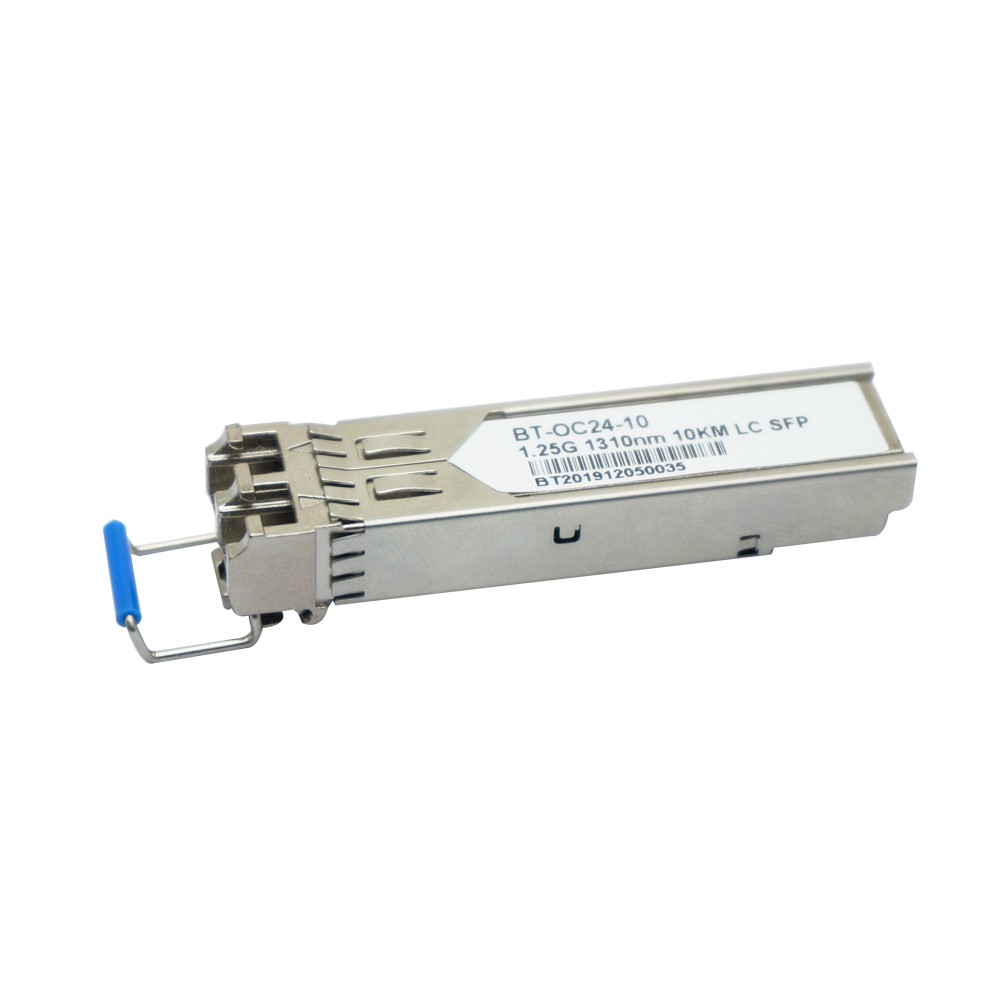

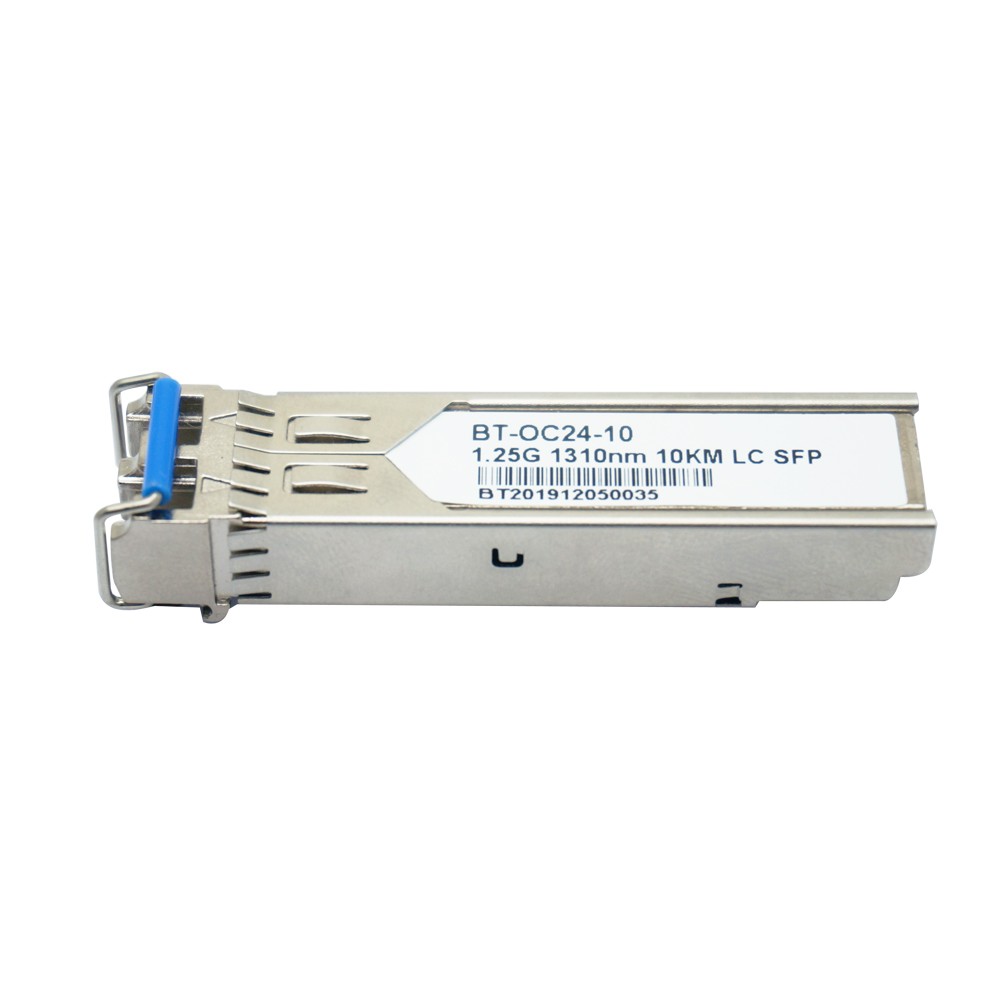

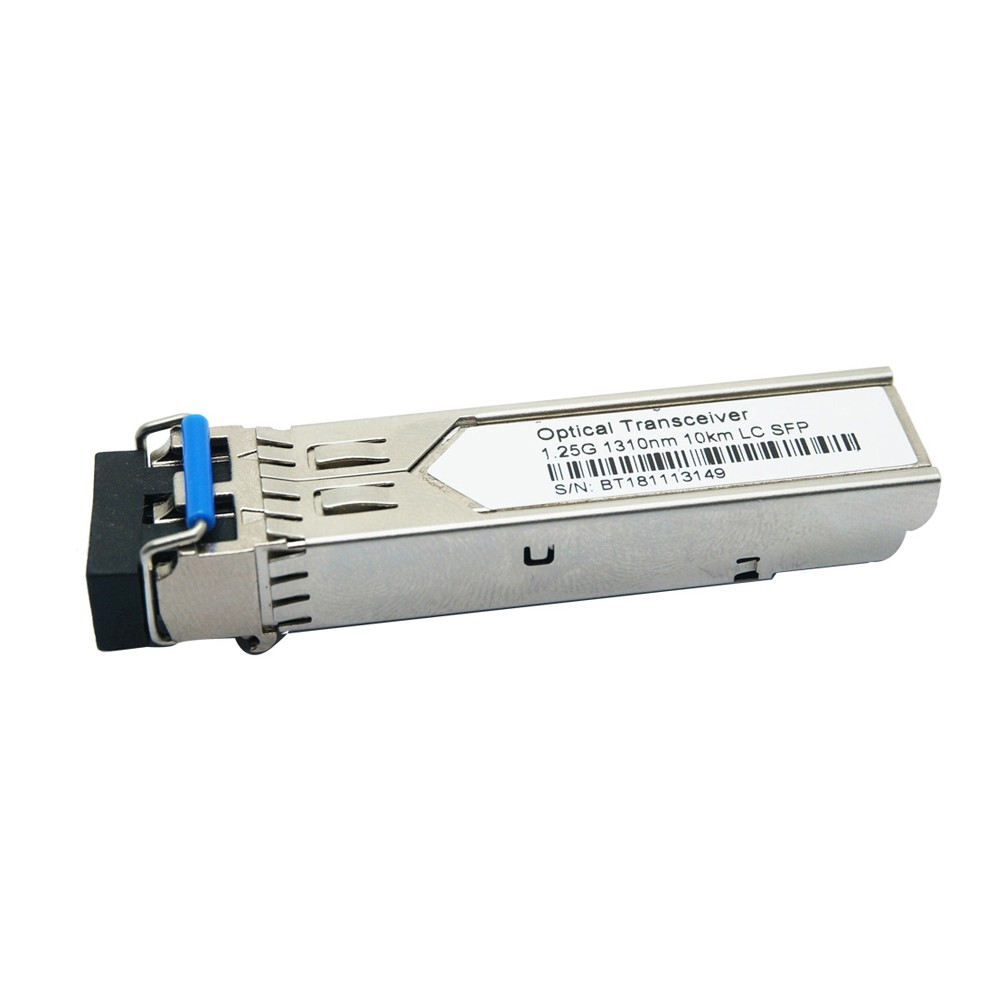

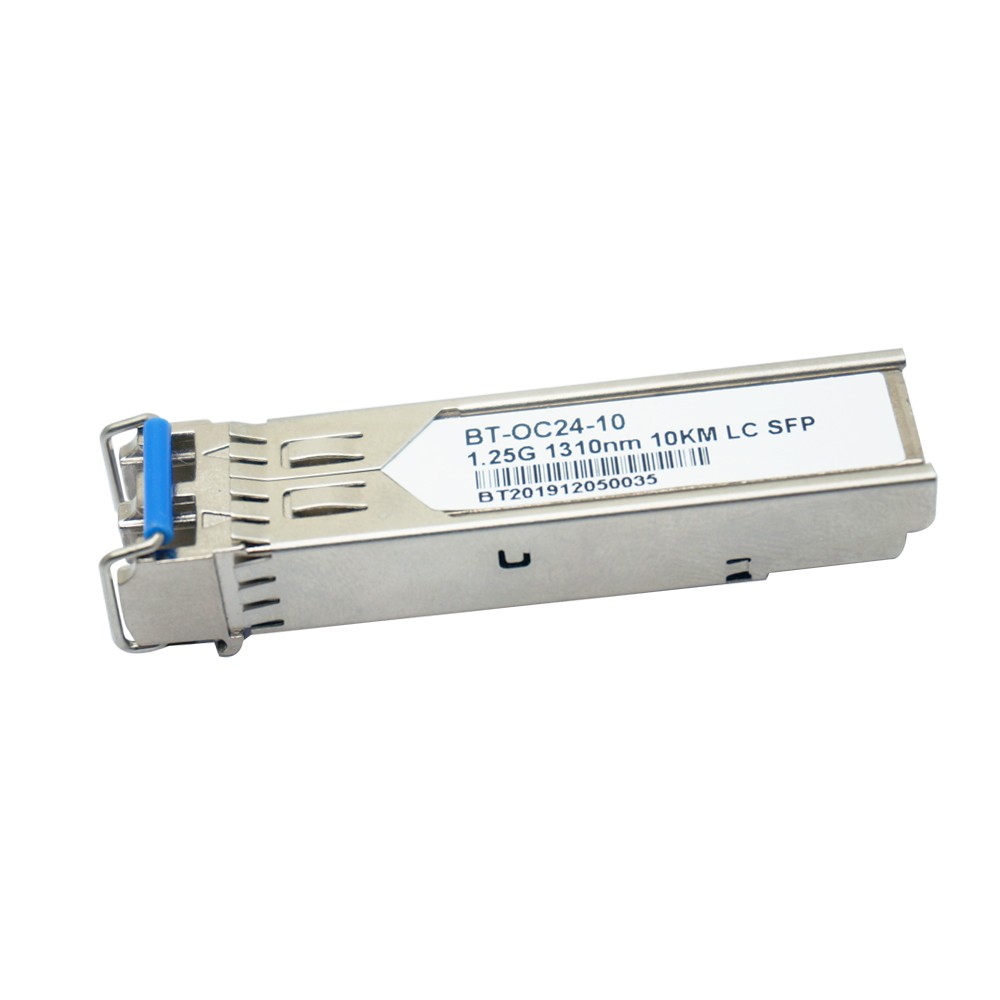

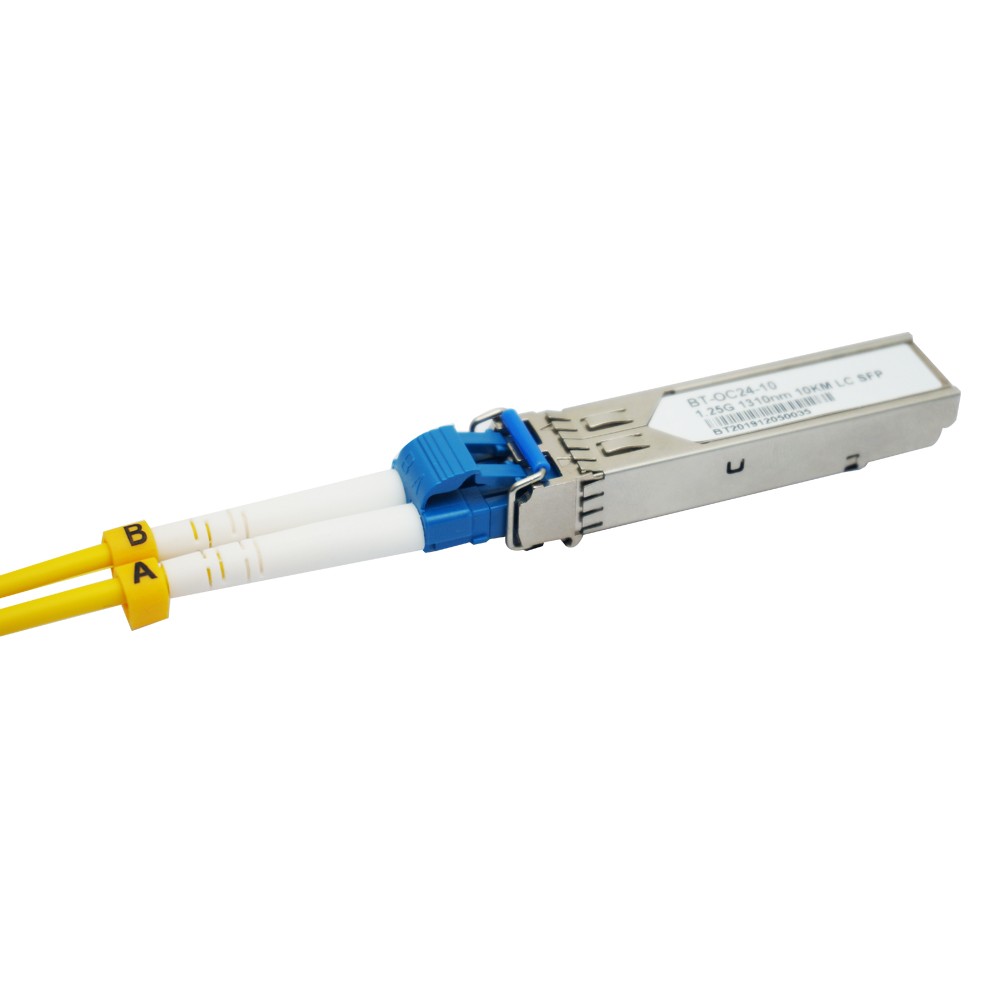

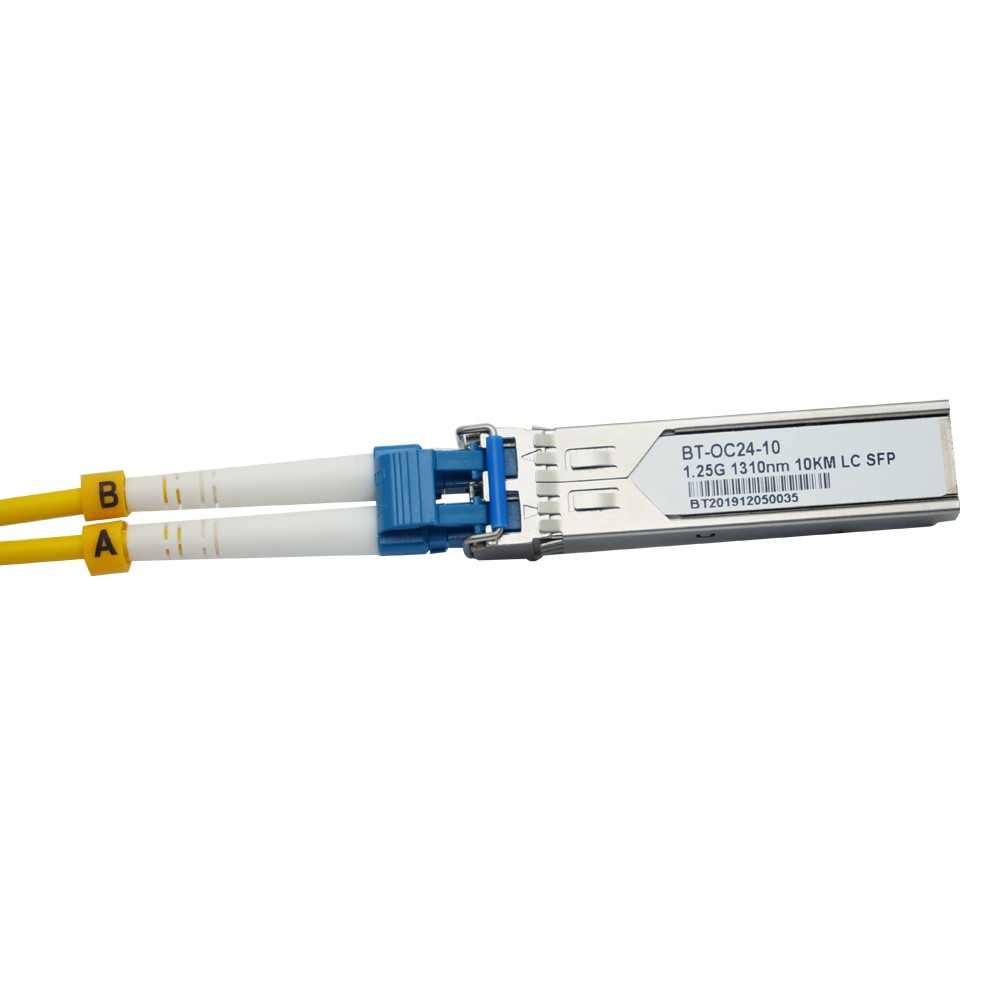

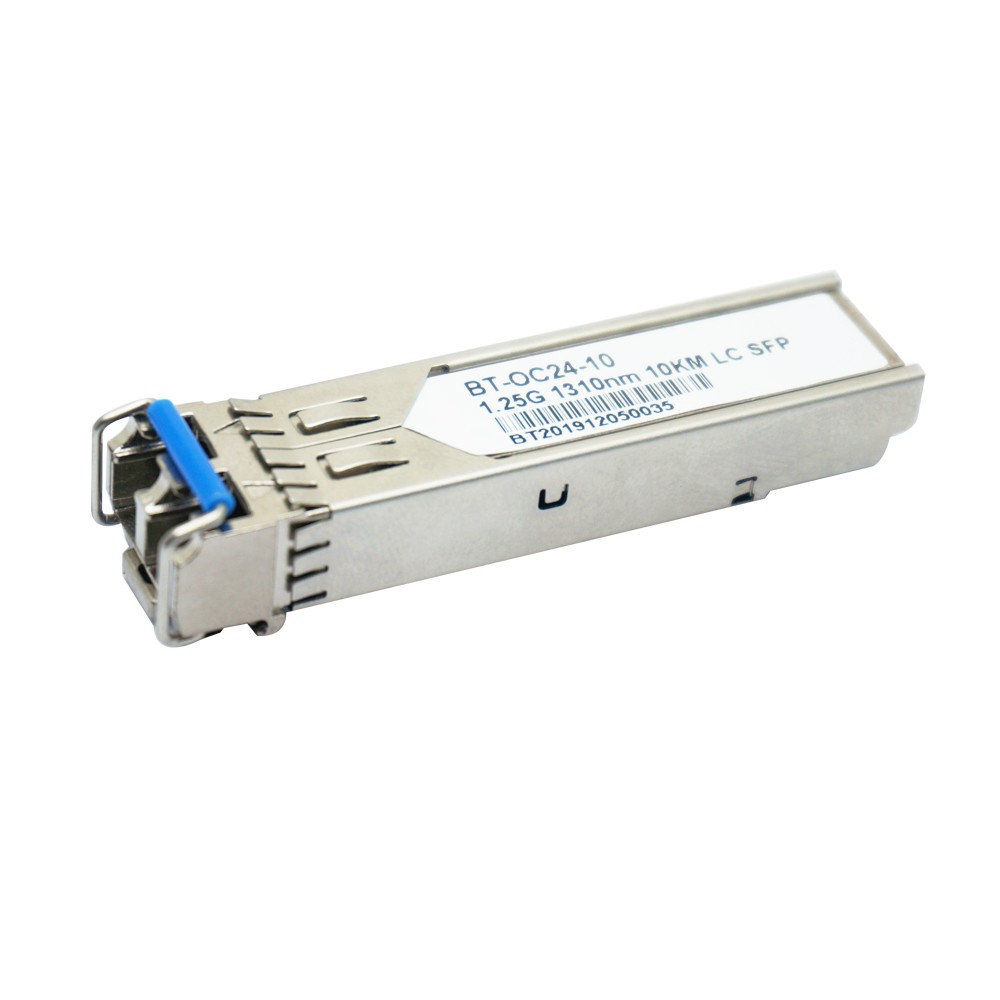

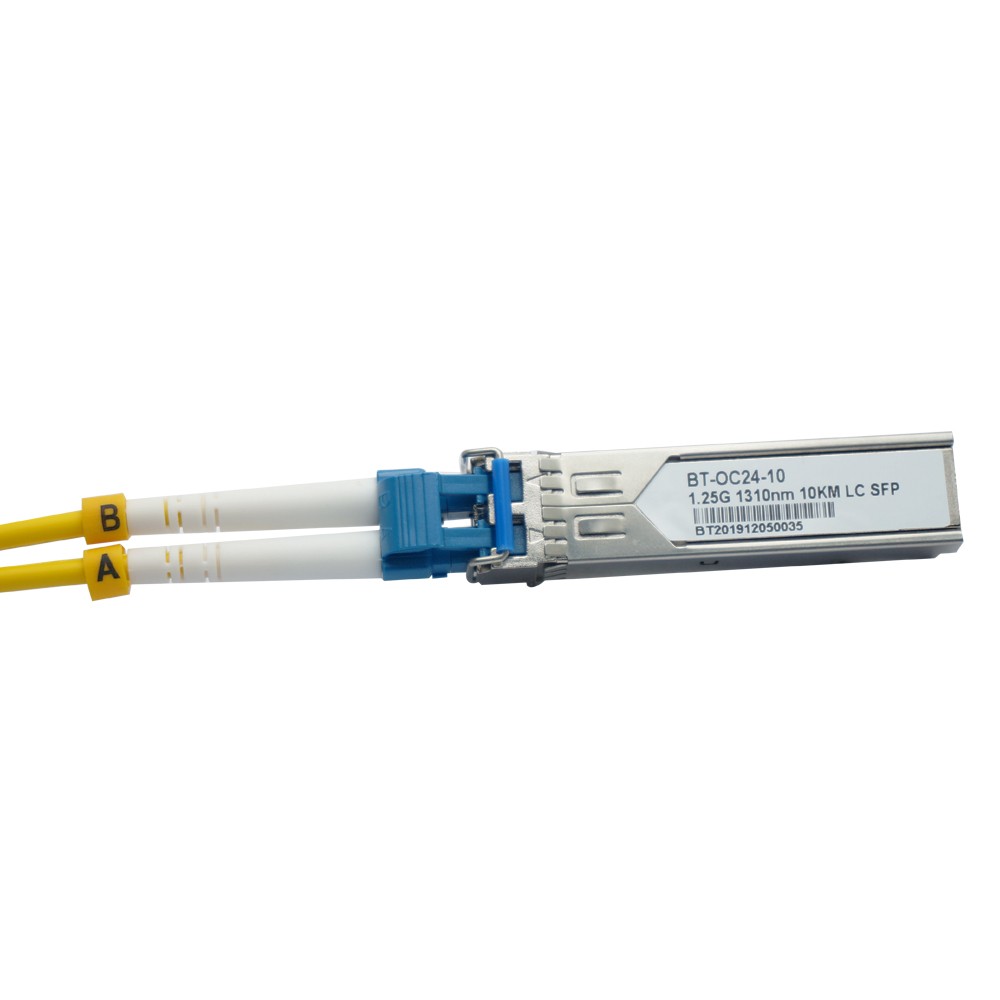

1.25G 1310nm 10km LC SFP dual fiber

> Dual data-rate of 1.25Gbps/1.063Gbps operation
> 1310nm FP laser and PIN photodetector for 20km transmission
> Compliant with SFP MSA and SFF-8472 with duplex LC receptacle
> Digital Diagnostic Monitoring:
Internal Calibration or External Calibration
> Compatible with SONET OC-24-LR-1
> Compatible with RoHS
> +3.3V single power supply
> Operating case temperature:
Standard : 0 to +70°C
Industrial : -40 to +85°C

Product Description:

Applications
> Gigabit Ethernet
> Fiber Channel
> Switch to Switch interface
> Switched backplane applications
> Router/Server interface
> Other optical transmission systems
Description
The SFP transceivers are high performance, cost effective modules supporting dual data-rate of
1.25Gbps/1.0625Gbps and 20km transmission distance with SMF.
The transceiver consists of three sections: a FP laser transmitter, a PIN photodiode integrated with a
trans-impedance preamplifier (TIA> and MCU control unit. All modules satisfy class I laser safety
requirements.
The transceivers are compatible with SFP Multi-Source Agreement (MSA> and SFF-8472. For further
information, please refer to SFP MSA.
