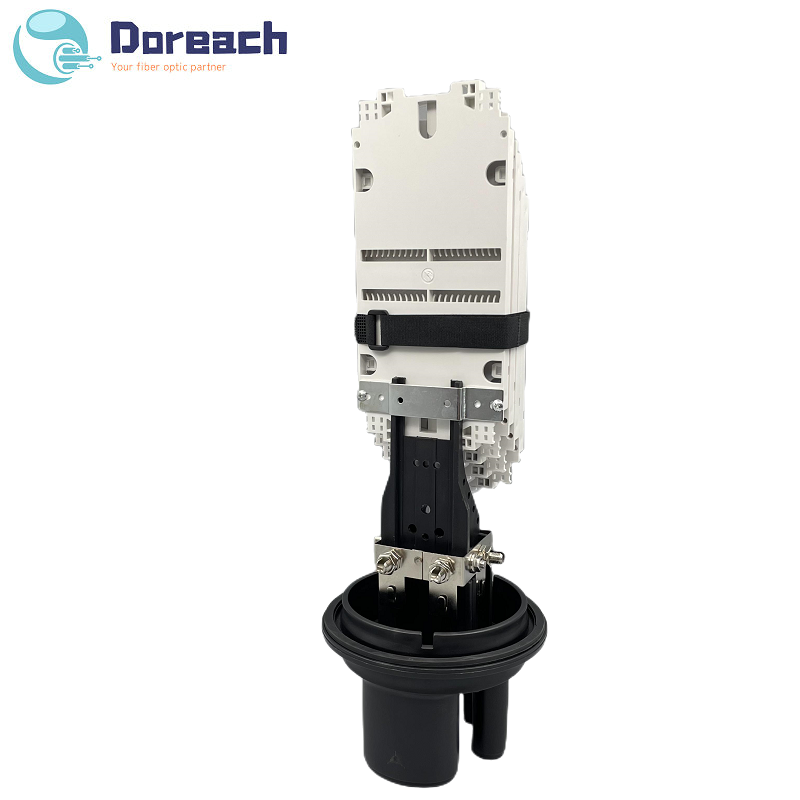

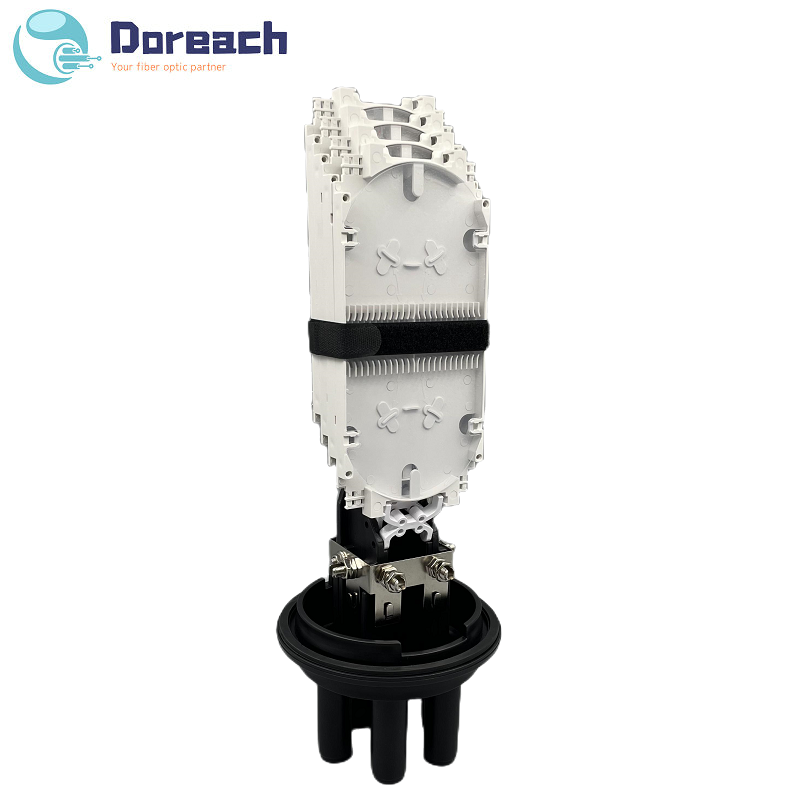

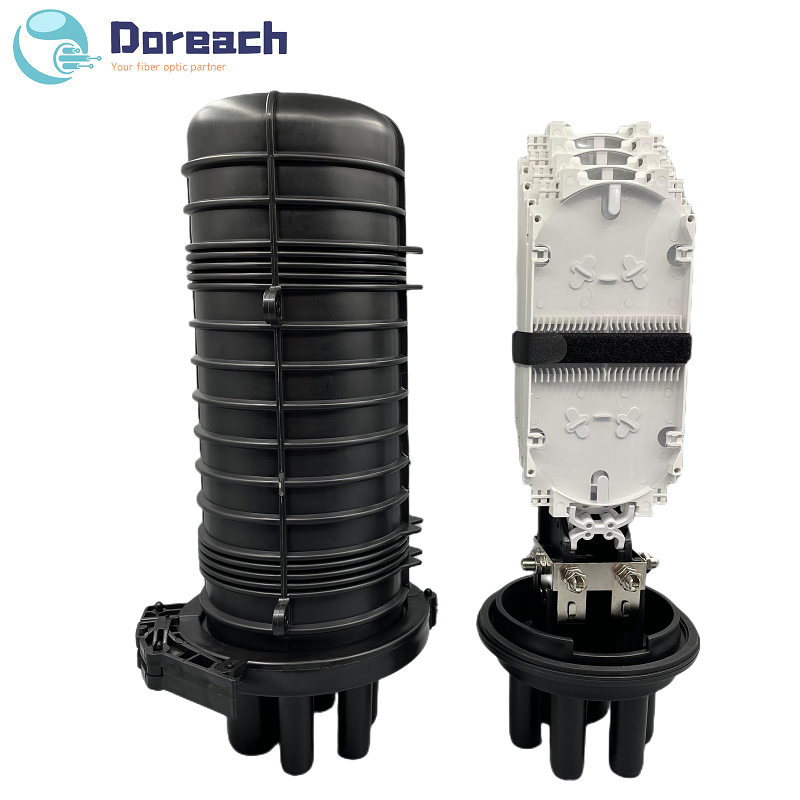

144 core dome closure heat shrinking seal

Model: DR-DC-010
Material:PP
Structure:Dome Vertical Heat Shrinkable closure
Dimension :470mm(H)*220mm(D)
Max Capacity: 192fibers
Max trays: 4trays
Cable Ports:1 In 4Out

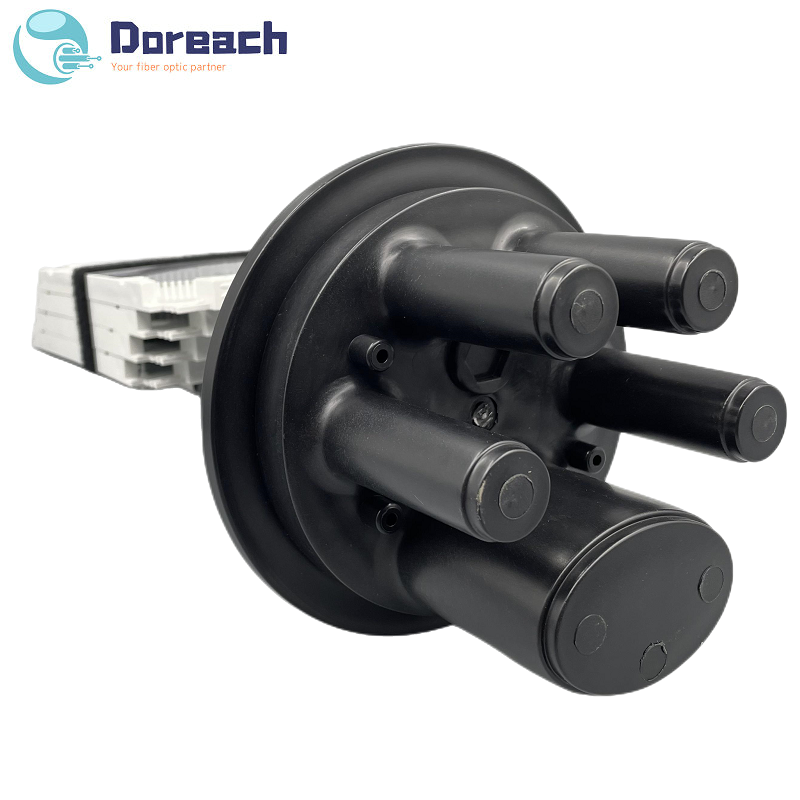

Suitable Dia Of Cable:  4 Small Round Ports(21mm) And 1 Large Oval Port(65mm)

Product Description:

144 core dome closure heat shrinking seal fiber optic splice closure


Description:
Optical Splice Closures Are Used To Distribute, Splice, And Store The Outdoor Optical Cables Which Enter And Exit From The Ends Of The Closure. There Are Two Connection Ways: Direct Connection And Splitting Connection. They Are Applicable To Situations Such As Overhead, Man-Well Of Pipeline, Embedded Situation Etc. Comparing With Terminal Box,The Closure Requires Much Stricter Requirement Of Seal. Sealing Ring And Air Valve Are Required For Closure, But That Are Not Necessary For Terminal Box.

Features:
1). High Quality PPR Material Optional, Can Ensure Harsh Conditions Such As Vibration, Impact, Tensile Cable Distortion And Strong Temperature Changes.
2). Solid Structure, Perfect Outline, Thunder, Erosion And Adding Resistance.
3). Strong And Reasonable Structure With Mechanical Sealing Structure, Can Be Opened After Sealing And Cab Be Reused.
4). Well Water And Dust Proof, Unique Grounding Device To Ensure The Sealing Performance, Convenient For Installation.
5). The Splice Closure Has A Wide Application Range, With Good Sealing Performance, Easy Installation, Produced With High Strength Engineering Plastic Housing, With Anti-Aging, Corrosion Resistance, High Temperature And High Mechanical Strength And So On.

Product Name

48 96 144 288 Core Fiber Optic Splice Joint Box

Structure

Heat Shrinkable Sealing

Material

PP

Dimension (Mm):

470mm(H)*220mm(D)

Max Capacity

192core

Maximum Install Tray Number

4

Ports

1 Inlet 4 Outlet


Suitable Dia Of Cable

4 Small Round Ports(21mm) And 1 Large Oval Port(65mm)
