Model:DR-FC-009
Application: FTTH
Connector type: SC
End face type: APC
Fiber type: SM
Length: 50MM
Insertion loss: ≤ 0.3dB
Return loss: ≥50dB
Color: Green
Ferrule: CCTC ceramic ferrules
Fiber cable type: 3.1*2.0mm butterfly optical cable

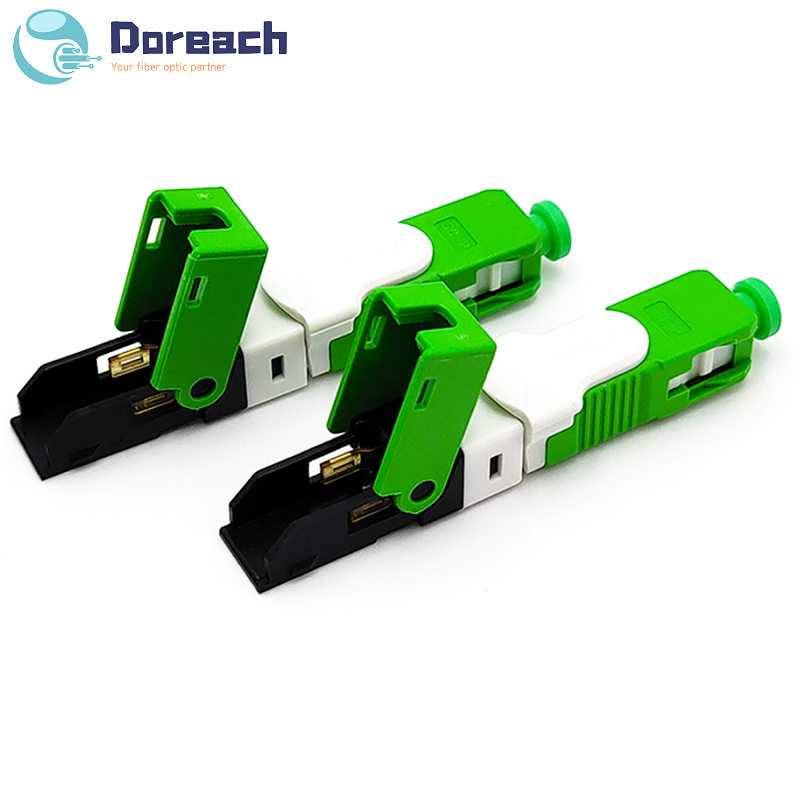

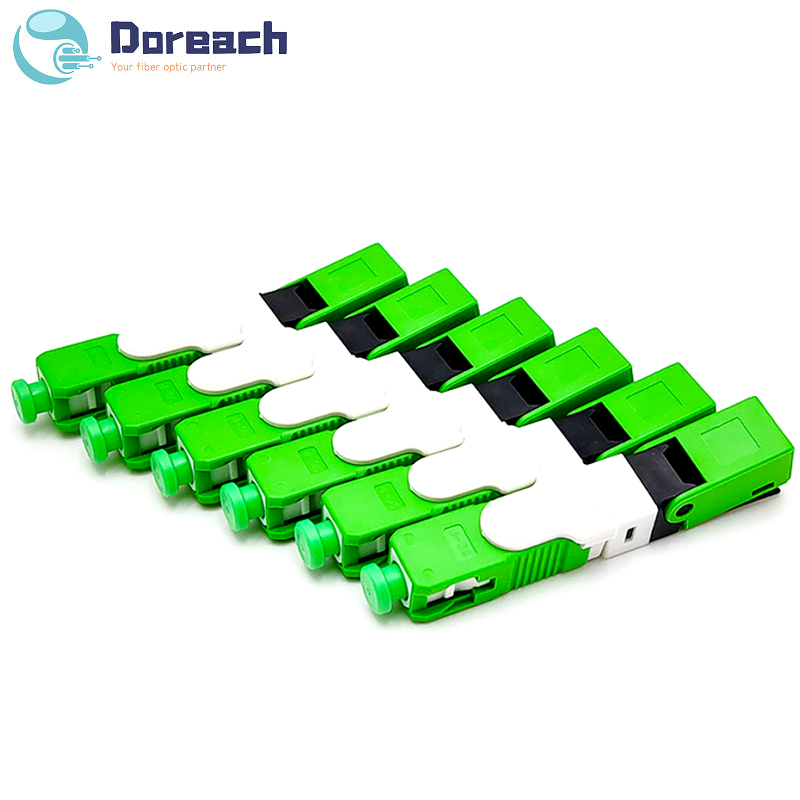

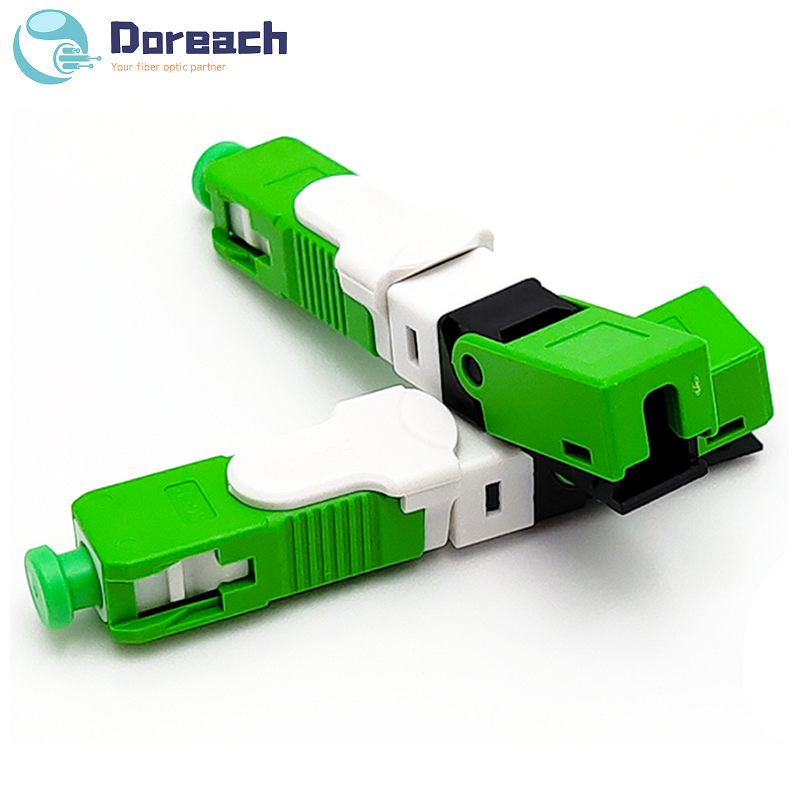

Quick Assembly SC APC connector

Description:

Quick Assembly SC connector can provide quick and easy terminations of fibers in the field. It allows the installer to terminate and make  connection in minutes at equipment and fiber patch panels. This connector system  with features of high installation quality, high success rate and high reliability.

Feature

- No special tools needed when installed

- Without any gluing and polishing process

- Can be made on-site without splicing connectors

- Only 30 seconds needed to learn the process of installation

- Good high temperature performance and good sealing

- Easy installation, quick and fast in the assembly field

- High return loss and low insertion loss

Application

- Distribution Frames & Patch Panels

- Fiber Optic Patch Cord & Pigtail

- Telecommunication Networks

- Data Processing Networks

- FTTH (Fiber To The Home)

- Local Area Network (LAN)

- Test Equipment.

- CATV & CCTV

Packing :

10pcs/blister box

2000pcs/carton

Carton size:42*33*25cm

Weight:10.35Kg
