Model:DR-FC-018
Application: FTTH
Connector type: SC
End face type: UPC
Fiber type: SM
Length: 50MM
Insertion loss: Average ≤0.3 DB, max ≤0.5 DB
Return loss: ≥45dB
Color: Green
Ferrule: CCTC ceramic ferrules
Fiber cable type: 3.0MM, 2.0MM, 0.9MM

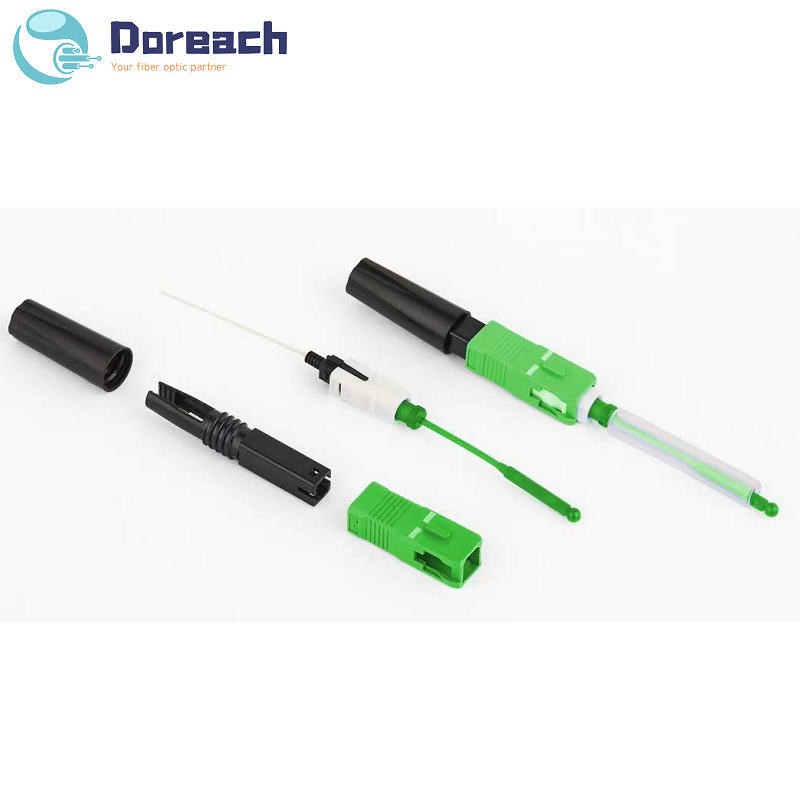

Hot Melt Type Quickly Assembly Connector SC/UPC

Description:

Hot-melt quickly assembly connector is directly with a grinding of the ferrule connector directly with the butterfly cable 3.0mm,2.0mm,0.9mm .using a fusion splicer welding,the welding point inside the connector tail, the weld is no need for additional protection.It can improve the optical performance of the connector

Feature

- No special tools needed when installed

- Without any gluing and polishing process

- Can be made on-site without splicing connectors

- Only 30 seconds needed to learn the process of installation

- Good high temperature performance and good sealing

- Easy installation, quick and fast in the assembly field

- High return loss and low insertion loss

Specifications

Parameters	Value		Parameters	Value
Insertion Loss	Average ≤0.3 DB, max ≤0.5 DB		Repeatability (500 Mating Times)	Average ≤0.3 DB, max ≤0.5 DB
Return Loss	≥ 45dB		Temperature cycle
Tensile strength	F>50N		Vibration test
Operating Temperature	-20 ~ +75℃		Flooding test
Storage Temperature	-40 ~ +85℃		Tensile strength	F>50N

Application

- Distribution Frames & Patch Panels

- Fiber Optic Patch Cord & Pigtail

- Telecommunication Networks

- Data Processing Networks

- FTTH (Fiber To The Home)

- Local Area Network (LAN)

- Test Equipment.

- CATV & CCTV

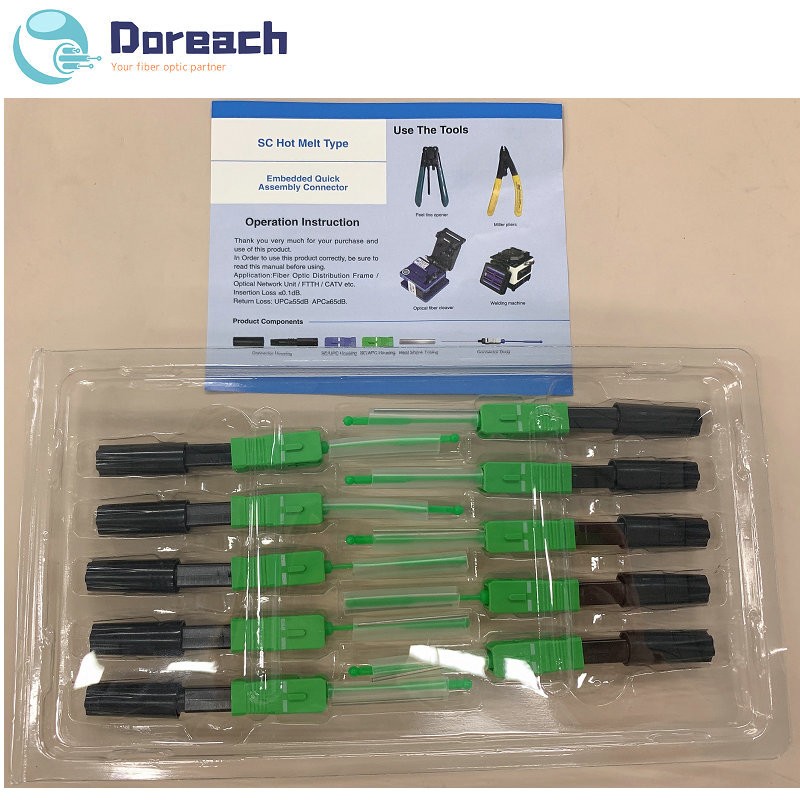

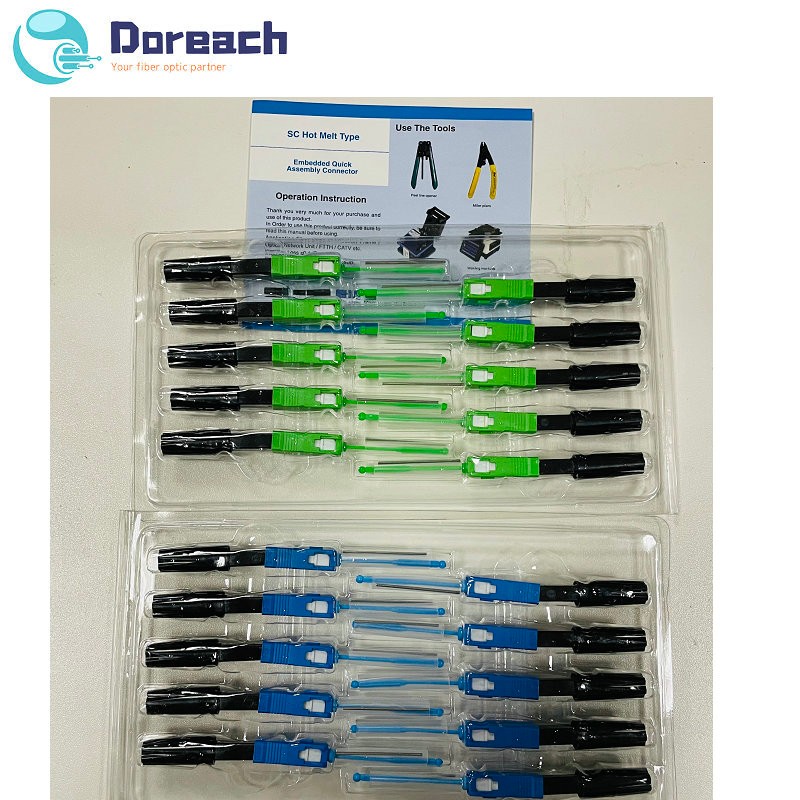

Packing :

10pcs/blister box

2000pcs/carton

Carton size:42*33*25cm

Weight:10.35Kg
