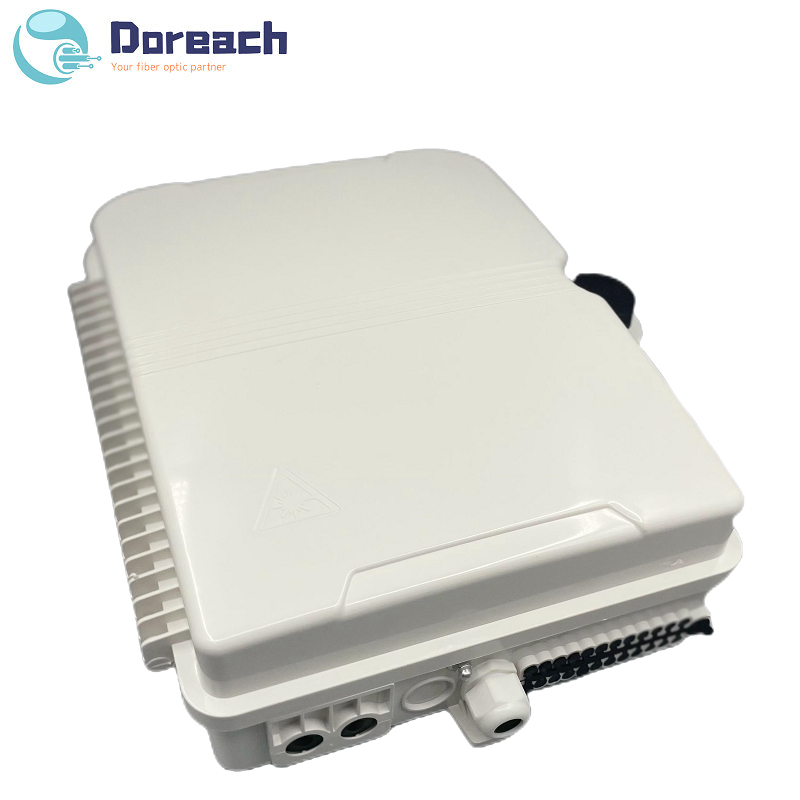

24fibers ODP box with 3 input ports fiber optic termination box

24fibers ODP box with 3 input ports fiber optic termination box

Model :DR-FDB017
Material :ABS
Dimension: 330*275*110

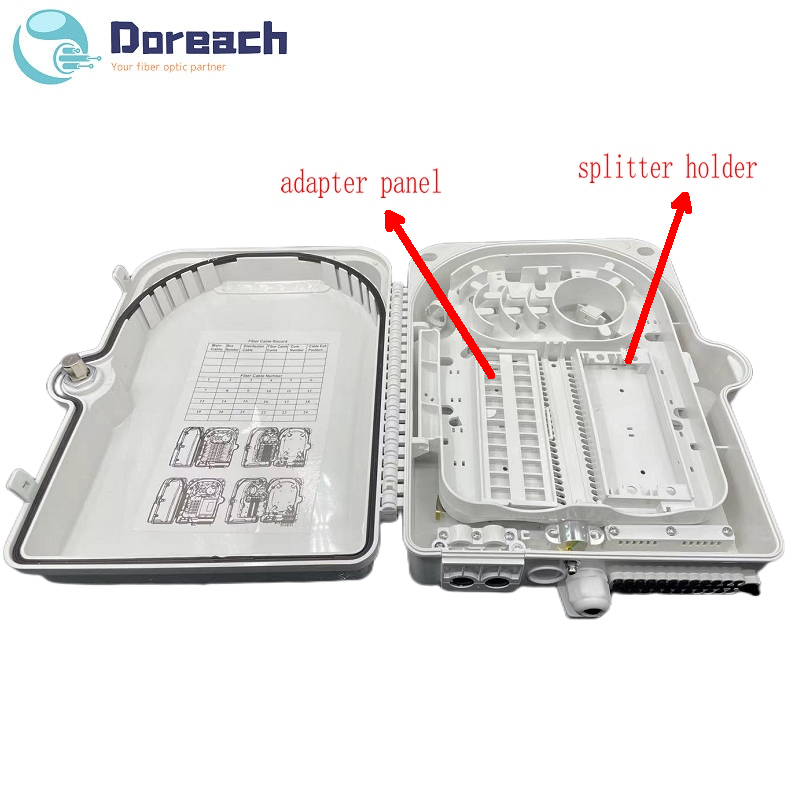

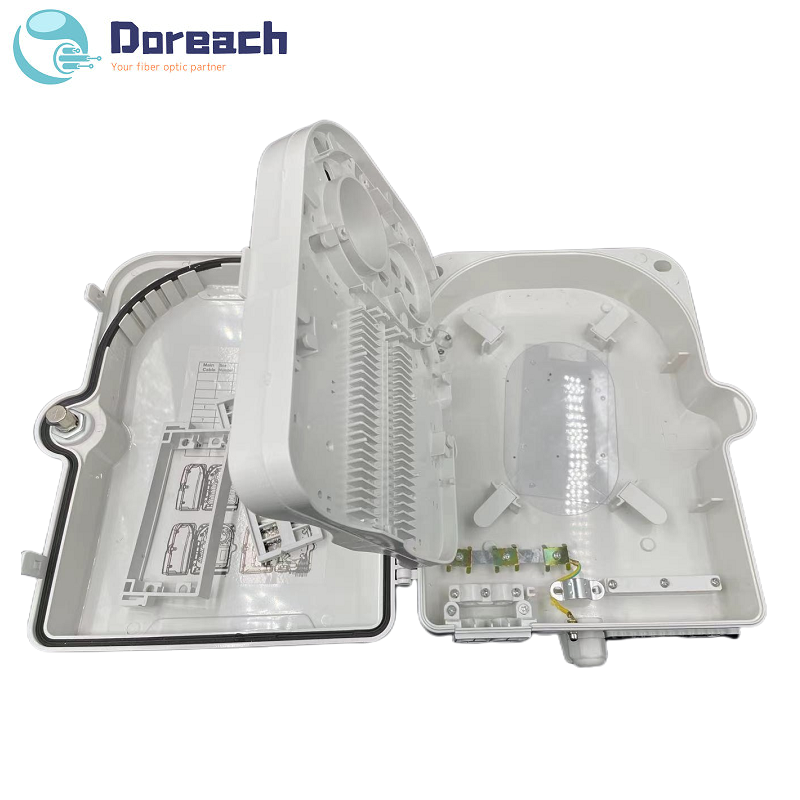

Max capacity: 1x16 PLC splitter cassette or 24 SC adapters

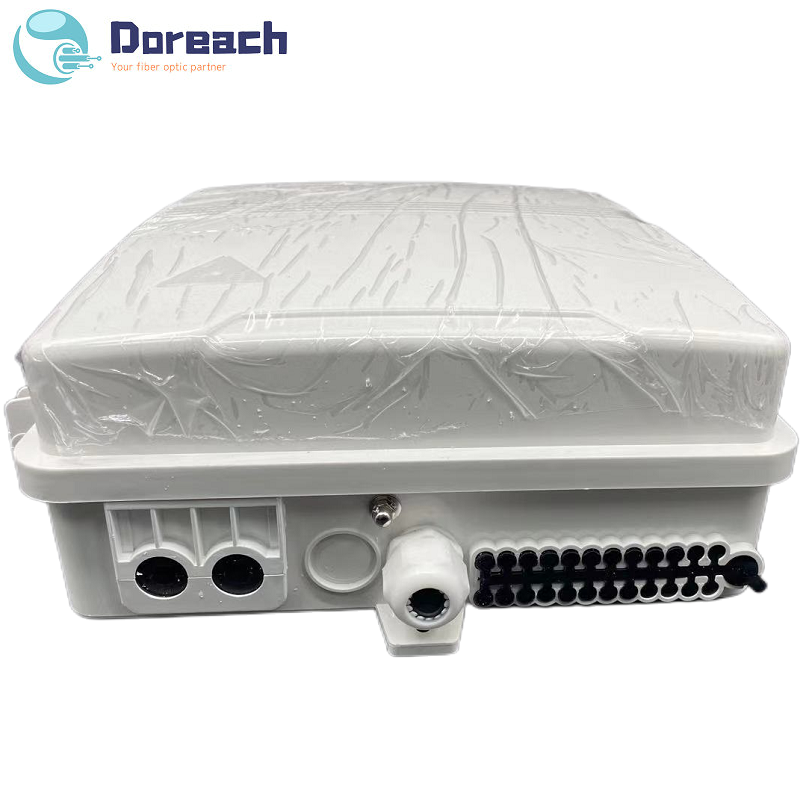

Cable port: 4 in 24 outs
Installation : Pole mount and wall mount

Product Description:

24fibers ODP box with 3 input ports fiber optic termination box

Features

Protection Grade: IP65.
Industry Standard User Interface,Be Made Of High Impact Plastic Material(Can Use 10 Years).
Anti-UV, Ultra Violet Resistant And Rainfall Resistant.
Wall And Pole Mountable.
Efficient Cable Management
Varies Of Adaptors Are Available

Application

Widely Used In FTTH Access Network.

Telecommunication Networks

CATV Networks
Data Communications Networks
Local Area Networks

Items	Specification
Splitter Capacity (Fiber Count)	1x16 PLC splitter cassette or 24 SC adapters
Dimensions (WHD,Mm)	330275110
Number Of Cable Entrance(S) And Exit(S)	4/24
Other Accessories	Wall Mounting Kits,Screws,Cable Tie,Heat Shrink Protective Sleeves,Key
Installation (Wall-Mounted/Pole-Mounting)	Wall-Mounted/Pole-Mounting
