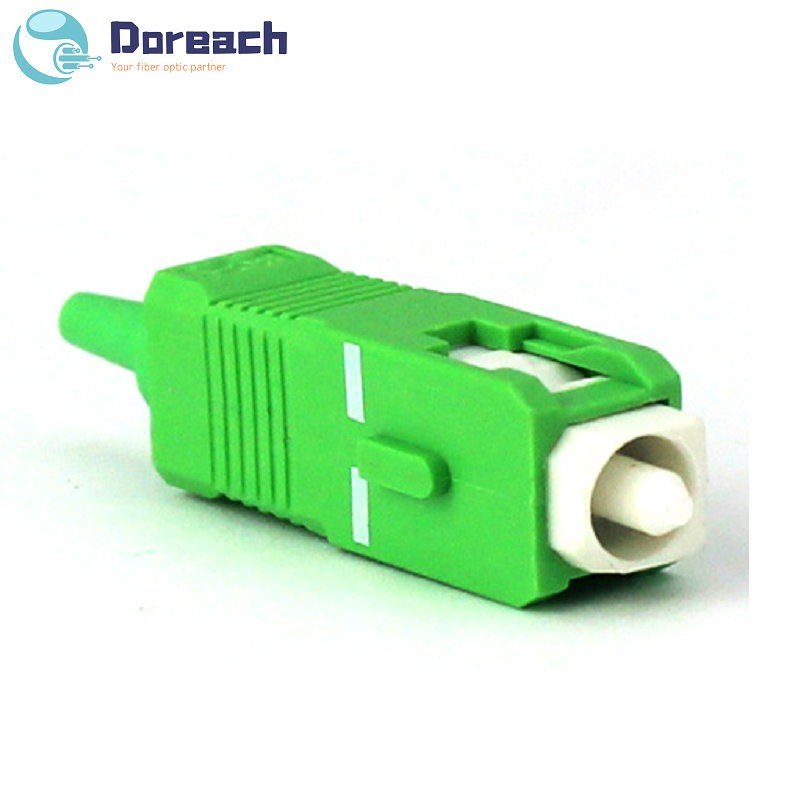

Model: DR-SP-1X8 SCA Insertion Loss : 10.5dB Return Loss : 55dB Fiber Type : G657A 0.9mm Length: 1m or customerized Channel Uniformity: 1.0dB Connector : SC/APC Fiber color : white or colorful

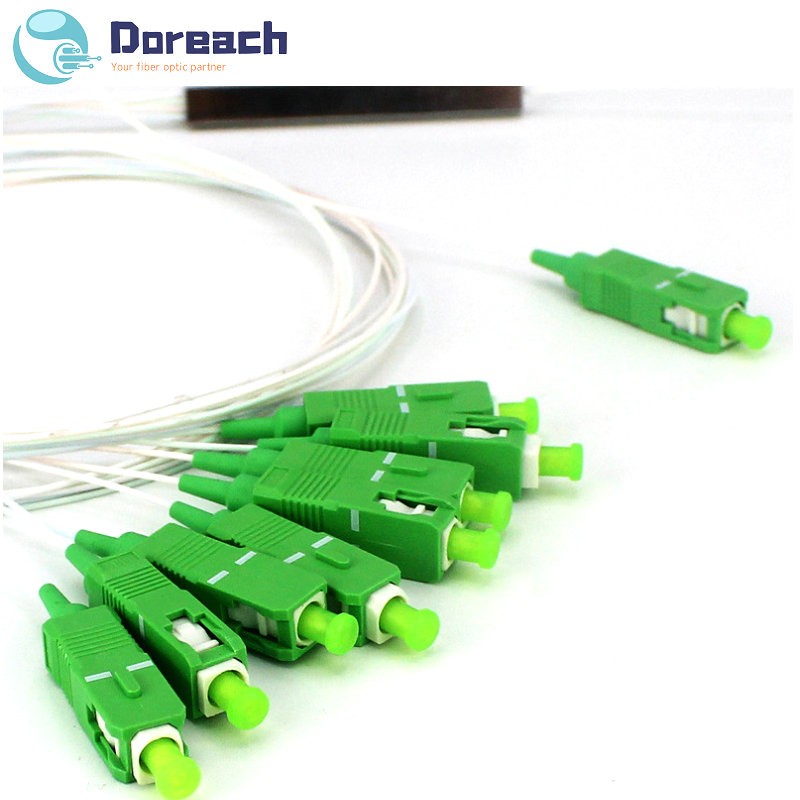

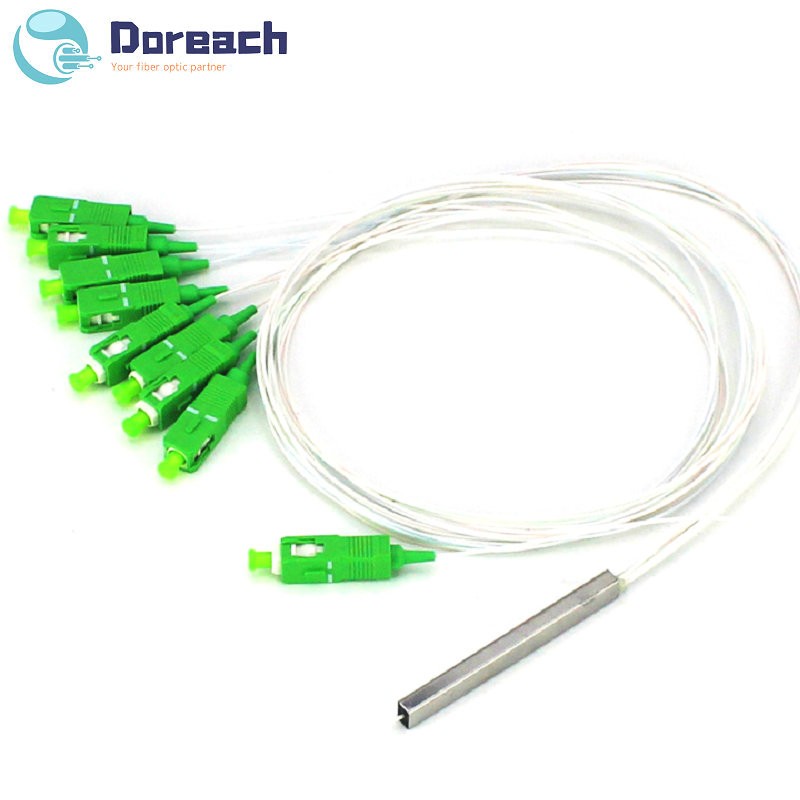

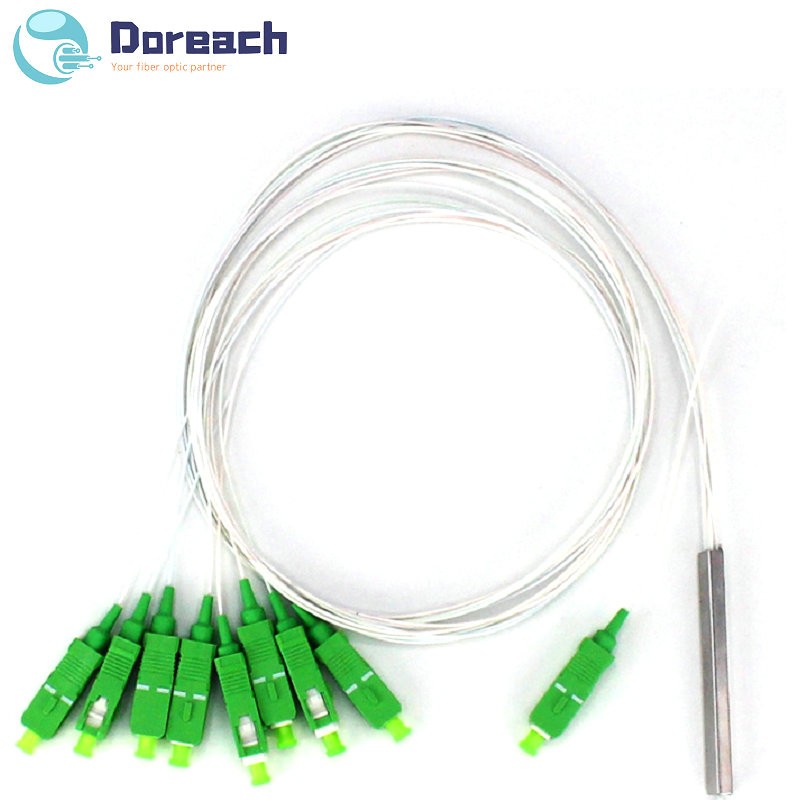

1x8 PLC splitter SC/APC
PLC (Planar Lightwave Circuits) splitters are developed using silica glass waveguide circuits and aligned fiber pigtails, integrated inside a miniature package. PLC splitters provide low-cost solution for optical signal distribution, with small form factor and superb reliability.
The PLCs devices have 1x4, 1x8, 1x16 and 1x32 standard configurations, as well as customized structures of 2x4, 2x32, and 2x64. These products meet or exceed Telcordia GR-1209-CORE and GR-1221-CORE reliability qualification requirement.
Features:
Low insertion loss
Various coupling ratio
high return loss and excellent uniformity.
Low Polarization dependent loss
Environmental stable
Operation wavelength: 1260nm to 1650nm
Operating Temperature:-40℃ to 85℃
Application:
FTTx systems
Optical LAN, Metro, WAN networks
Passive optical networks
CATV networks
Specification:
Table 1 – 1×N PLC optical splitter
Parameter
Unit
1x2
1x4
1x8
1x16
1x32
1x64
Standard Grade
Insertion Loss
Max
dB
4.2
7.2
10.5
13.7
17.0
20.6
Channel Uniformity
Max
dB
0.6
0.8
1.0
1.6
1.6
2.0
Polarization Dependent Loss
Max
dB
0.2
0.3
0.3
0.3
0.3
0.5
Operation Wavelength
nm
1260~1650
Return Loss
MIN
dB
55(Premium Grade) / 50(Standard Grade)
Directivity
MIN
dB
55
Operation Temperature
℃
-40~+85
Storage Temperature
℃
-40~+85
Fiber Type
-
G.657A
250um Basic type PLC splitter
Dimension
mm
4*4*40
4*7*50
4*7*50
4*12*60
900um Steel tube type PLC splitter
4*7*60
4*12*60
6*20*80
6*40*100
Cassette type PLC splitter
10*80*100
18*80*120
18*115*140
18*115*140
Note:
1． Above parameter without fiber optic connectors;
2． Each connector will add loss 0.2dB.
Table 2– 2×N PLC optical splitter
Parameter
Unit
2x2
2x4
2x8
2x16
2x32
2x64
Standard Grade
Insertion Loss
Max
dB
4.2
7.3
11.0
14.3
17.5
21.0
Channel Uniformity
Max
dB
0.8
1.0
1.2
1.5
1.8
2.0
Polarization Dependent Loss
Max
dB
0.2
0.3
0.3
0.3
0.3
0.5
Operation Wavelength
nm
1260~1650
Return Loss
MIN
dB
55(Premium Grade) / 50(Standard Grade)
Directivity
MIN
dB
55
Operation Temperature
℃
-40~+85
Storage Temperature
℃
-40~+85
Fiber Type
-
G.657A
250um Basic type PLC splitter
Dimension
mm
4*7*50
4*7*60
4*7*60
4*12*60
900um Steel tube type PLC splitter
4*7*60
4*12*70
6*20*80
6*40*100
Cassette type PLC splitter
10*80*100
18*80*120
18*115*140
18*115*140
Note:
1．Above parameter without fiber optic connectors;
2． Each connector will add loss 0.2dB.
(H*W*L)
(H*W*L)
